1/3 Tubular Locking Plate | Titanium Small Fragment System | Distal Fibula & Clavicle Fracture Fixation

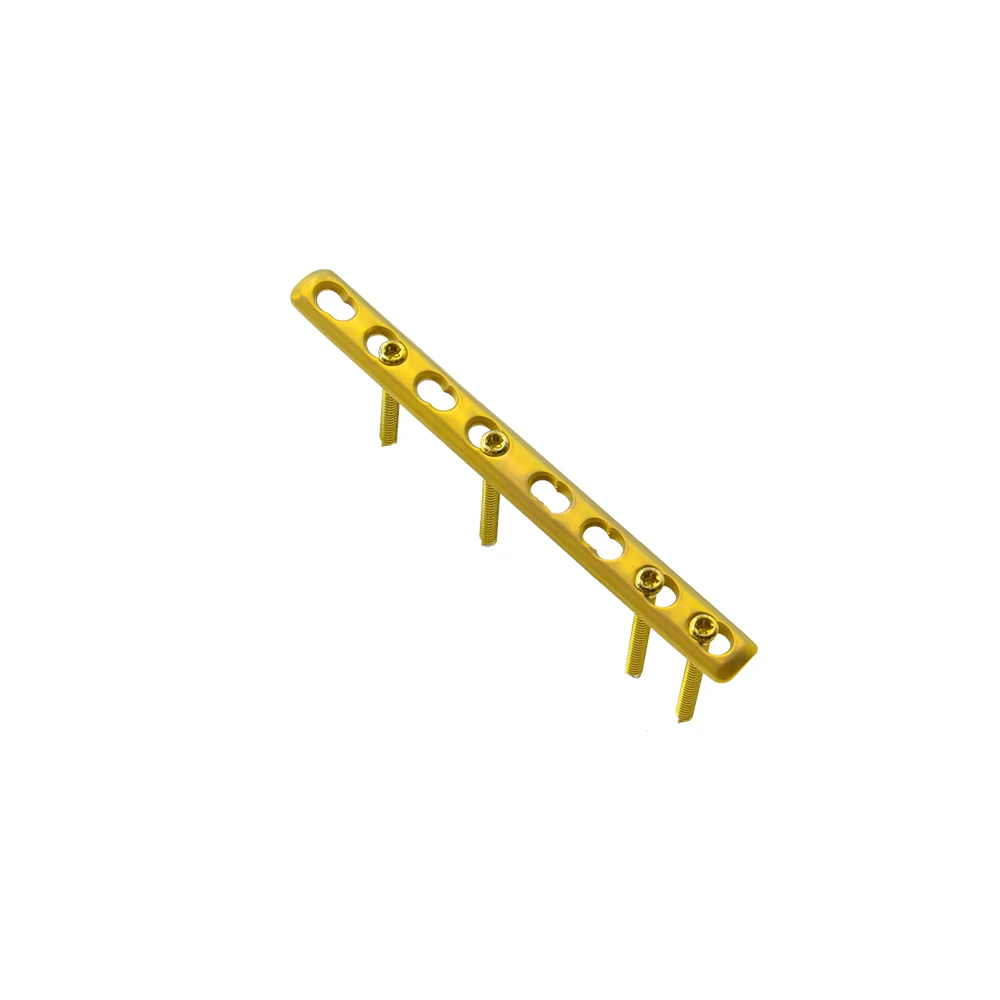

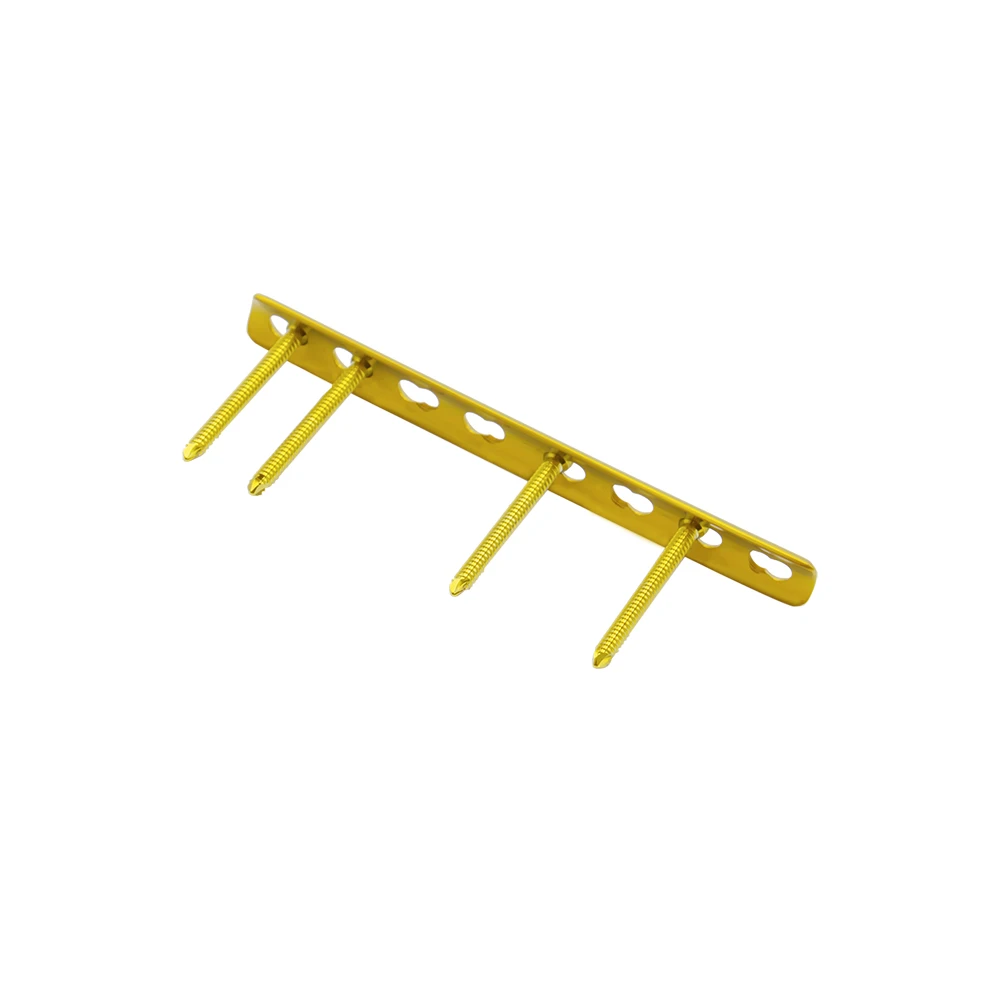

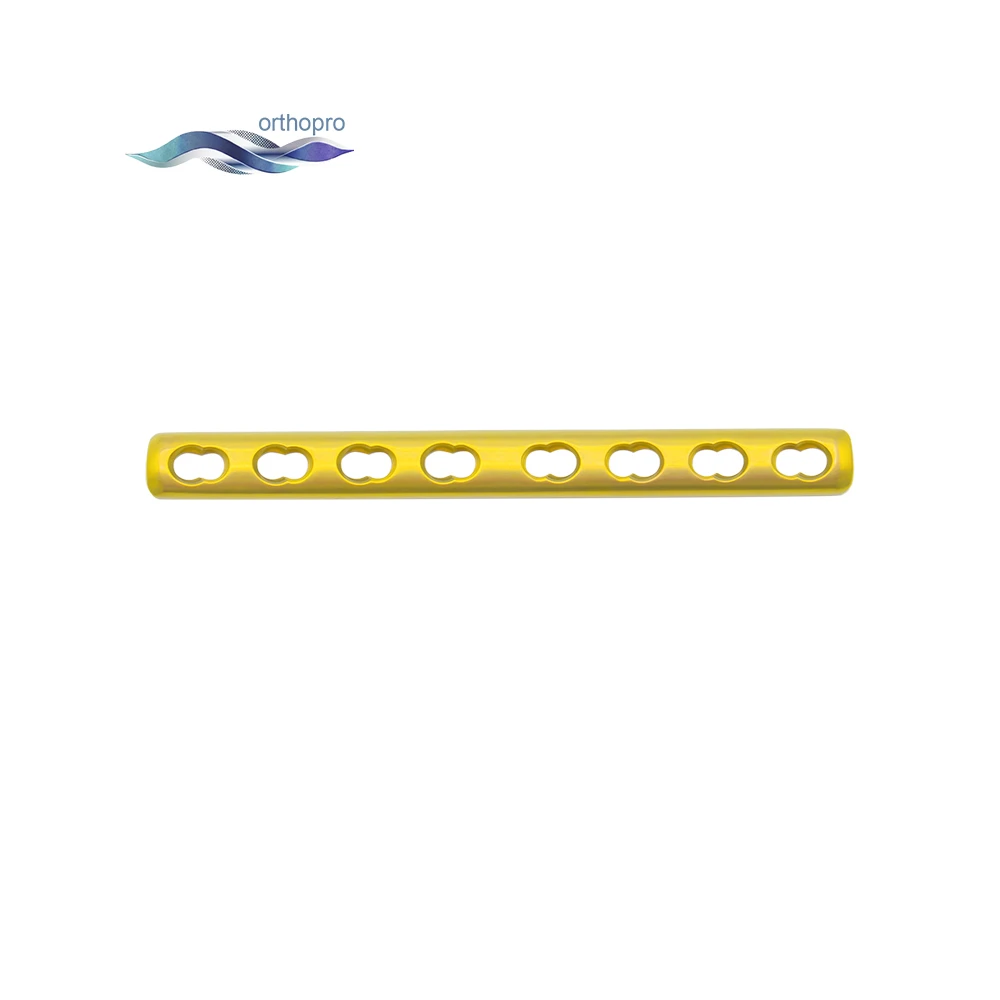

Versatile 1/3 Tubular Locking Plate for Small Fragment Fractures

At OrthoPro, we are dedicated to manufacturing high-quality orthopedic implants that meet the rigorous demands of trauma surgery globally. Our 1/3 Tubular Locking Plate is a standout component of our Small Fragment System. Designed with a specific semi-cylindrical shape, it is optimized for fixing fractures in bones with a small diameter or minimal soft tissue coverage, such as the distal fibula (lateral malleolus), distal ulna, and clavicle.

The OrthoPro one-third tubular locking plate represents an evolution of the traditional tubular plate. By incorporating locking technology, we provide surgeons with the ability to create a fixed-angle construct. This is particularly crucial in elderly patients or those with poor bone stock, where screw purchase in the bone alone may be insufficient to maintain reduction.

Key Design Features and Surgical Benefits

Our 1/3 tubular locking plate is engineered for flexibility and strength. The design balances the need for anatomical contouring with the requirement for rigid fixation:

• Low-Profile Geometry: The plate is exceptionally thin (typically around 1mm to 1.5mm thick), making it ideal for areas with minimal subcutaneous tissue, such as the lateral ankle. This reduces the risk of postoperative soft tissue irritation and wound complications.
• Locking Capability: Unlike standard tubular plates, our locking version features threaded holes. These holes accept locking screws that thread into the plate, preventing screw toggle and back-out. This provides superior stability in comminuted or osteoporotic fractures.
• Easy Contouring: The plate is manufactured from malleable yet strong Titanium Alloy or Stainless Steel, allowing surgeons to easily contour the plate intraoperatively to match the specific anatomy of the patient’s bone surface.
• Collar Design (Optional): Many of our tubular plates feature a collar around the screw holes to increase the thickness at the thread interface, enhancing the locking strength without significantly increasing the overall profile of the plate.
• Versatile Hole Configuration: The oval or round holes allow for some degree of adaptation. While primarily designed for locking screws, the system is often compatible with standard cortical screws for lag screw techniques or dynamic compression where applicable.

Clinical Indications

The 1/3 Tubular Locking Plate is indicated for the fixation of fractures, osteotomies, and non-unions in small bones. It is widely considered the “workhorse” for:

• Distal Fibula Fractures: specifically lateral malleolar fractures (Weber A, B, and C types).
• Clavicle Fractures: Used in mid-shaft or distal clavicle fractures where a lower profile is required.
• Distal Ulna Fractures: Providing stability for the ulnar styloid or head.
• Metacarpals and Metatarsals: Suitable for shaft fractures in the hand and foot.
• Pelvic Surgery: Occasionally used as a spring plate or for rim fixation in acetabular fractures.

Technical Specifications

Our plates are manufactured to adhere to international dimensional standards, ensuring compatibility with standard Small Fragment instrument sets. Below are the technical parameters for the OrthoPro 1/3 Tubular Locking Plate:

Why Partner with OrthoPro?

OrthoPro serves as a strategic partner for medical distributors and healthcare institutions seeking reliable B2B orthopedic supply solutions. We understand the competitive nature of the global market and strive to offer products that combine quality with affordability.

Manufacturing Excellence: Every 1/3 tubular plate is produced using advanced CNC machining to ensure precise hole threading and surface finish. Our Quality Control (QC) teams perform rigorous inspections to verify dimensions and mechanical integrity.

Reliable Supply Chain: We maintain a substantial inventory of standard trauma implants to facilitate quick order fulfillment. Whether you need a single emergency shipment or a bulk stock order for a hospital network, our logistics team is ready to support you.

Order Information and Contact

We offer flexible packaging solutions (sterile or non-sterile) and competitive wholesale pricing. Expand your product portfolio with our high-demand trauma implants today.

Request a Quote: Contact us for our latest price list and full catalog of small fragment plates.

Get a Quote Now

For technical inquiries or to become a distributor, please email us at: info@orthopro.mx
