Reliable 2.0mm Mini Locking Plate System for Small Bone Trauma

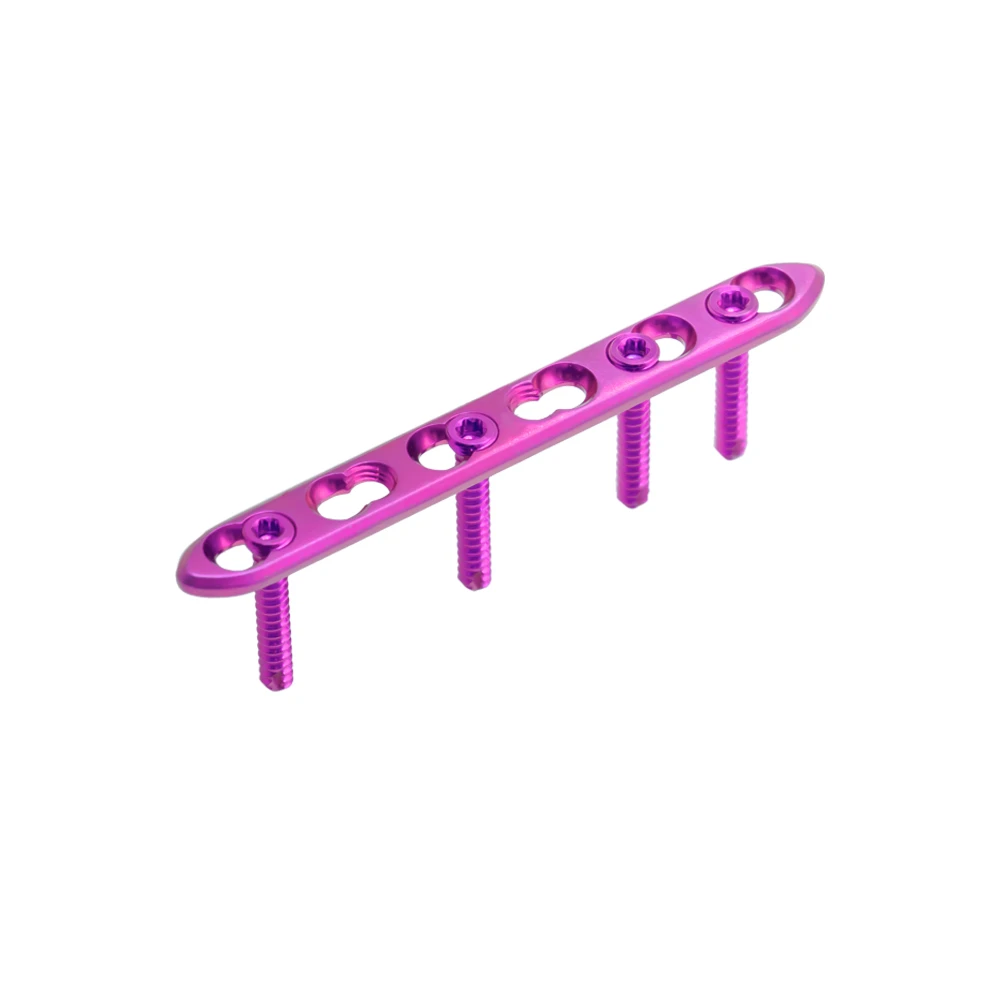

At OrthoPro, we are dedicated to providing high-quality orthopedic solutions that meet the evolving needs of trauma surgeons worldwide. Our 2.0mm Mini Locking Plate system is a cornerstone of our small fragment inventory, specifically designed to address fractures in the hand and foot. Bridging the gap between micro-fixation and standard small fragment sets, the 2.0mm system offers robust stability for metacarpals and metatarsals while maintaining a profile low enough for delicate soft tissue envelopes.

As a specialized B2B supplier, OrthoPro focuses on delivering medical-grade titanium implants that combine precision engineering with cost-effectiveness. Our mini locking plates are trusted by distributors and hospitals globally for their consistency, biomechanical performance, and ease of use in the operating room.

Biomechanical Design and Features

The 2.0mm Mini Locking Plate is engineered to provide superior fixation in complex fracture patterns. Its design incorporates several key features to enhance surgical outcomes:

• Optimized Profile: The plates feature a low-profile design with rounded edges and a polished surface. This is critical in the hand and foot, where tendons glide directly over the bone. A smooth surface reduces the risk of tendonitis and adhesion formation, facilitating earlier mobilization.
• Locking Technology: The threaded holes in the plate accept 2.0mm locking screws, creating a fixed-angle construct. This “internal fixator” principle is essential when treating osteopenic bone or comminuted fractures, as it does not rely on plate-to-bone friction for stability, thereby preserving periosteal blood supply.
• Versatile Combi-Holes (on specific models): Many plates in this system feature a design that allows for either locking screws or standard cortical screws. This gives the surgeon the flexibility to lag a fracture for compression and then lock the construct for neutralization.
• Anatomical Contouring: The plates are designed to match the natural anatomy of small tubular bones, reducing the need for extensive intraoperative bending which can weaken the implant and prolong surgery.
• High-Strength Material: Manufactured from Medical Grade Titanium Alloy (Ti6Al4V) or Stainless Steel. Titanium is preferred for its high strength-to-weight ratio, excellent biocompatibility, and compatibility with MRI/CT imaging.

Clinical Indications

The 2.0mm Mini Locking Plate is a versatile implant indicated for the fixation of fractures, osteotomies, non-unions, and replantations of small bones. Primary applications include:

• Metacarpal Fractures: Ideal for transverse, oblique, and comminuted fractures of the hand bones.
• Phalangeal Fractures: Used in proximal phalanges where a slightly more robust implant than the 1.5mm system is required.
• Metatarsal Fractures: Effective for foot trauma, particularly in the forefoot.
• Joint Arthrodesis: Providing stable fixation for fusions of the carpometacarpal or tarsometatarsal joints.
• Osteotomies: Stabilizing bone cuts performed for deformity correction.
• Veterinary Orthopedics: Also widely used in veterinary surgery for fracture repair in small animals.

Technical Specifications

OrthoPro ensures that every batch of implants undergoes rigorous quality control. The general technical parameters for the 2.0mm system include:

• System Size: 2.0mm Mini Fragment.

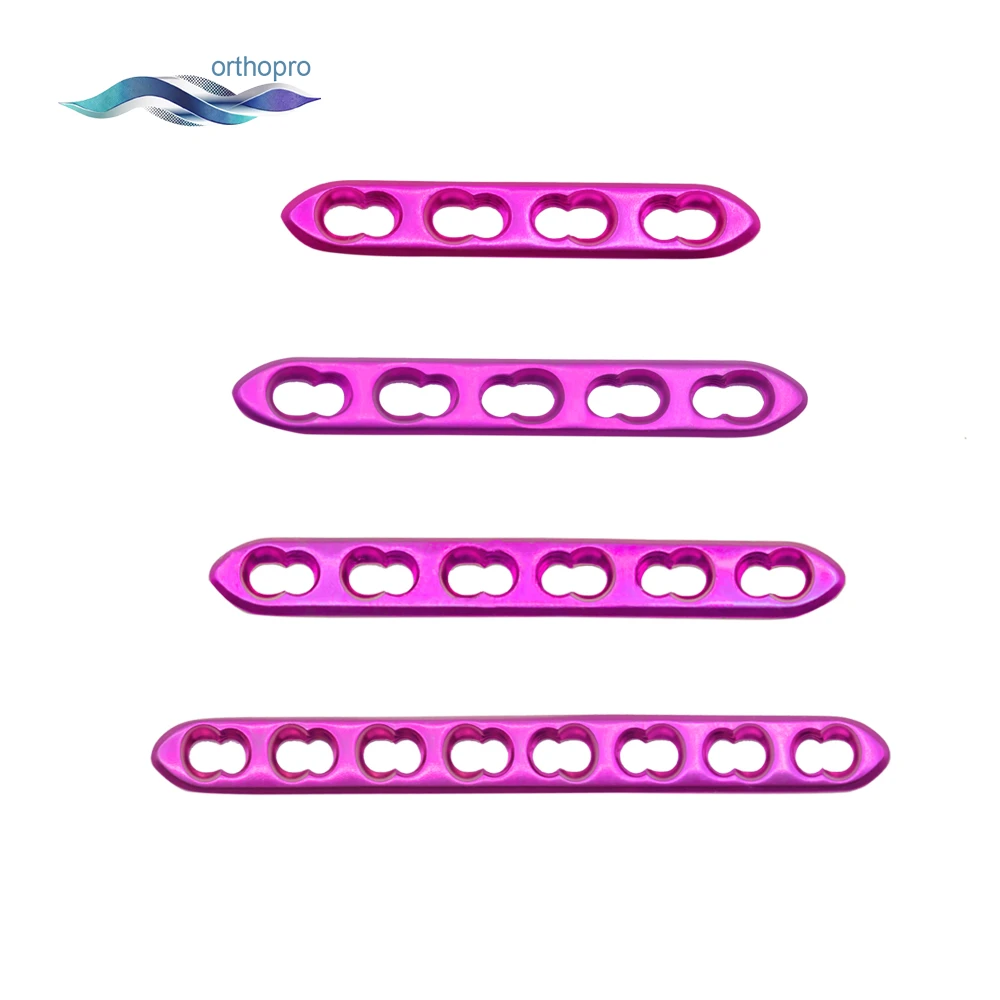

• Plate Configurations: Available in Straight, T-Shape, Y-Shape, and L-Shape to accommodate different anatomical locations.
• Hole Count: Ranging from 4 holes to 12+ holes depending on the specific plate model required.
• Screw Compatibility:
  • 2.0mm Locking Screws (Self-tapping).
  • 2.0mm Cortical Screws (Non-locking).
• Drill Bit Size: Typically requires a corresponding drill bit (e.g., 1.5mm or 1.6mm) for the core hole.

Why Partner with OrthoPro?

Choosing OrthoPro as your supplier means securing a partnership built on value and reliability.

1. Manufacturing Excellence: Our facilities utilize state-of-the-art CNC machining to ensure precise tolerances. Every screw thread and plate hole is inspected to guarantee seamless compatibility with surgical instruments.
2. Global Distribution Experience: We understand the complexities of international trade. From proper packaging to documentation, we ensure your order clears customs smoothly and reaches your warehouse on time.
3. Competitive B2B Pricing: We offer tiered wholesale pricing structures designed to support the growth of our distributors. By sourcing directly from us, you can offer competitive rates to your local hospitals while maintaining healthy margins.
4. Comprehensive Inventory: We offer a full range of trauma implants. You can consolidate your purchasing by sourcing your entire mini fragment system (1.5mm, 2.0mm, 2.4mm) from a single reliable vendor.

Contact Us for Pricing and Catalogs

Are you ready to enhance your product offerings with high-quality **2.0mm Mini Locking Plates**? Contact our sales team today for a detailed price list, technical specifications, or to request samples.

For more information or to place a B2B order, please visit our Contact Us page. You can also email us directly at info@orthopro.mx for immediate assistance.
