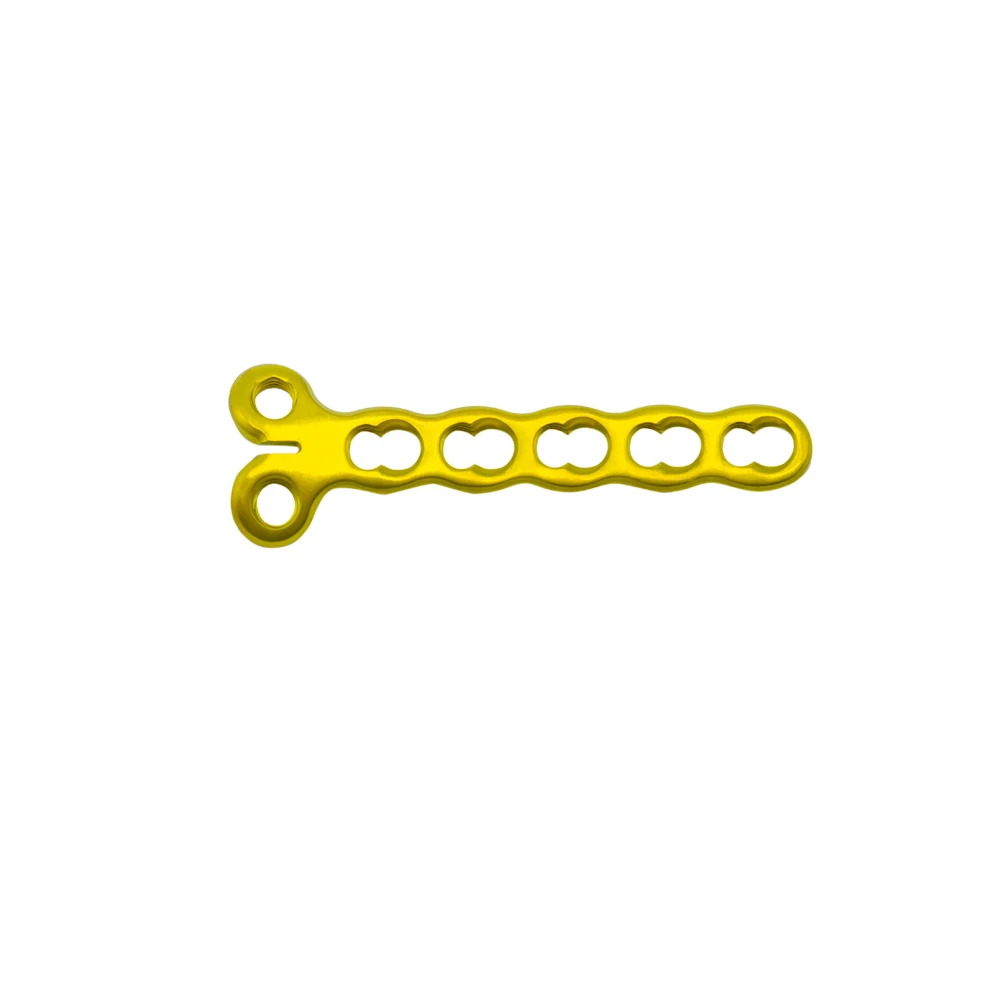

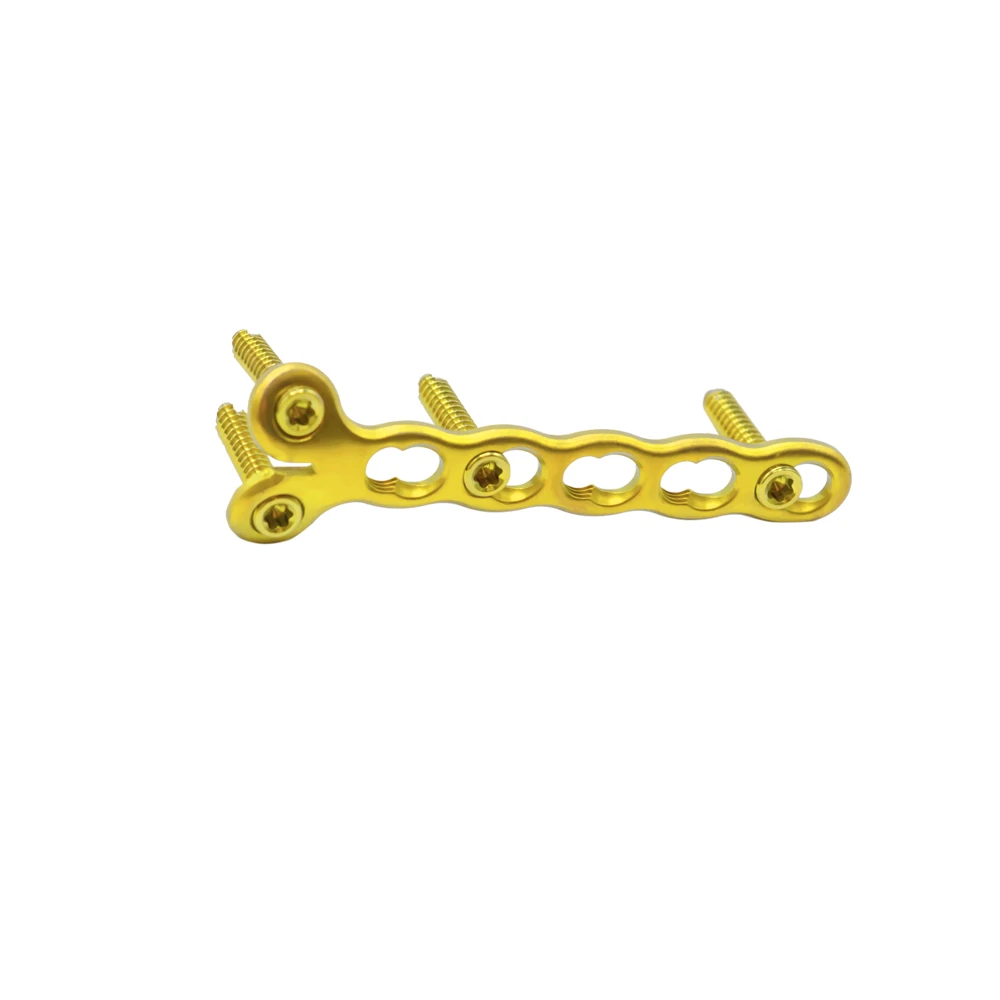

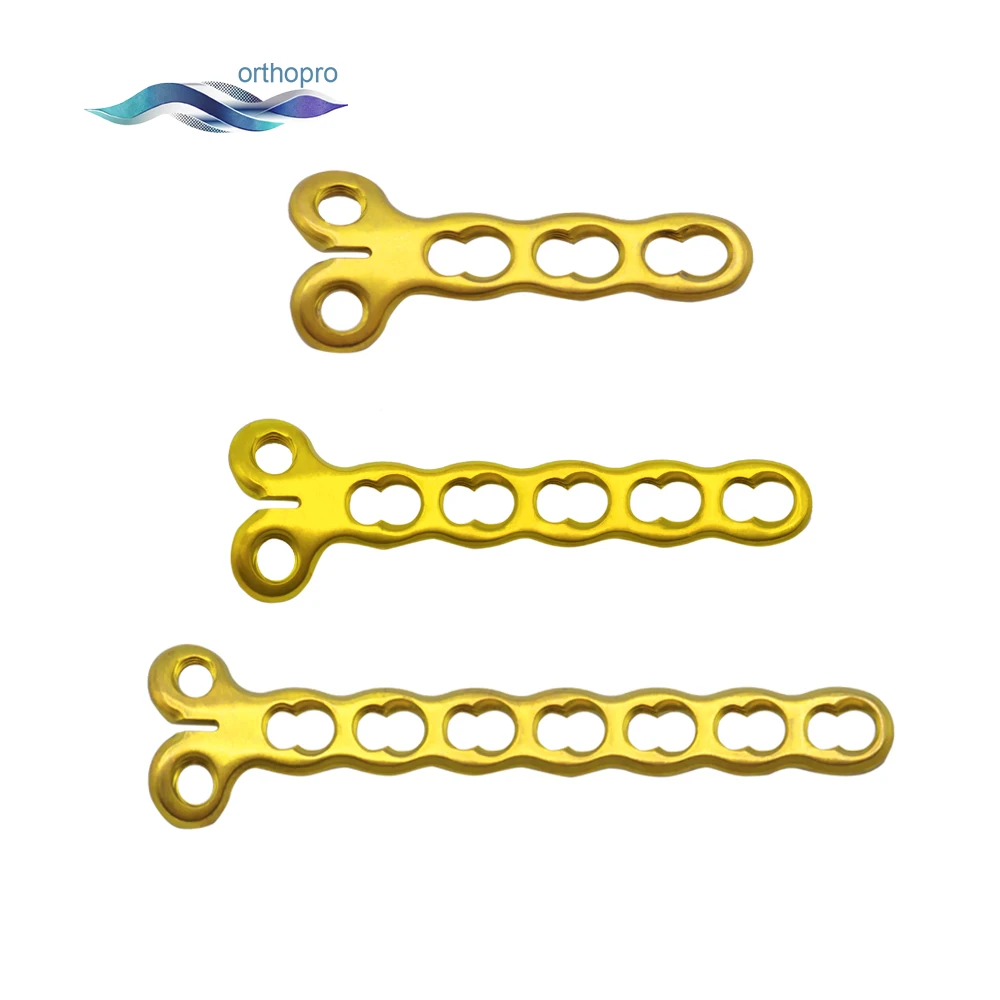

2.7mm Mini Condylar Locking Plate | Small Fragment System & Metacarpal Fixation | OrthoPro

Advanced Fixation for Peri-Articular Fractures

At OrthoPro, we are committed to providing superior orthopedic solutions that empower surgeons to achieve optimal patient outcomes. The 2.7mm Mini Condylar Locking Plate is a specialized implant within our Small Fragment System, designed specifically to address the complex challenges of fractures involving the condyles of small long bones. Whether treating a comminuted fracture of the metacarpal head or a proximal phalanx fracture, this implant delivers the stability required for rapid bone healing.

In the delicate anatomy of the hand and foot, space is limited, and soft tissue coverage is often thin. Our orthopedic implants are manufactured with high-precision engineering to ensure a low-profile fit that minimizes tendon irritation. The mini condylar locking plate allows for the clustering of screws in the condylar fragment, providing a secure hold even in osteoporotic bone.

Key Design Features and Surgical Benefits

The 2.7mm Mini Condylar Locking Plate incorporates several advanced features designed to streamline surgical procedures and enhance fixation rigidity:

• Anatomical Condylar Shape: The plate head is contoured to match the anatomy of the condyles, allowing for the precise placement of locking screws to capture small articular fragments without impinging on the joint surface.
• Locking Technology: The threaded holes in the plate head and shaft accept 2.7mm locking screws, creating a fixed-angle construct. This “internal fixator” effect prevents screw back-out and loss of reduction, which is critical in comminuted fractures.
• Combi-Hole Versatility: The shaft holes are designed to accept both locking screws for angular stability and standard cortical screws for dynamic compression, giving surgeons the flexibility to adapt to the specific fracture pattern intraoperatively.
• Tapered Tip: The proximal end of the plate is tapered to facilitate sub-muscular insertion, enabling Minimally Invasive Plate Osteosynthesis (MIPO) techniques that preserve the periosteal blood supply.
• Polished Surface: The implant surface is treated to reduce soft tissue adhesion, facilitating easier hardware removal if necessary in the future.

Material Specifications and Quality Assurance

Material selection is paramount for implant longevity and biocompatibility. We offer the 2.7mm Mini Condylar Locking Plate in two medical-grade materials:

1. Titanium Alloy (Ti-6Al-4V): Provides a modulus of elasticity closer to that of bone, reducing stress shielding. It is also fully MRI-compatible and highly resistant to corrosion.
2. Stainless Steel (316LVM): Known for its high tensile strength and stiffness, providing rigid stabilization for complex trauma cases.

All OrthoPro implants undergo rigorous quality control inspections and are manufactured in ISO-certified facilities to ensure compliance with international medical device standards.

Technical Parameters

Our plates are designed to integrate seamlessly with standard AO-type 2.7mm instrument sets. Below are the detailed specifications for the 2.7mm Mini Condylar Locking Plate:

Clinical Indications

This versatile implant is indicated for the fixation of fractures, osteotomies, and non-unions of small bones, particularly in the following areas:

• Metacarpals: Fractures of the metacarpal head and neck, especially those extending into the joint.
• Phalanges: Intra-articular fractures of the proximal and middle phalanges.
• Metatarsals: Distal metatarsal fractures in the foot.
• Distal Radius/Ulna: Fixation of small avulsion fragments or styloid fractures where larger plates are unsuitable.
• Pediatric Trauma: Long bone fractures in small pediatric patients requiring stable fixation.

Why Partner with OrthoPro?

OrthoPro serves as a reliable supply chain partner for hospitals, clinics, and distributors globally. We understand the dynamics of the B2B medical market and offer:

• Competitive Wholesale Pricing: We provide cost-effective solutions without compromising on quality, helping you maximize your budget.
• Consistent Supply: Our robust inventory management ensures that popular sizes of the mini condylar locking plate are always in stock for rapid dispatch.
• Expert Support: From technical documentation to logistical coordination, our team is here to support your business needs.
