2.7mm Mini Straight Locking Plate Orthopedic Implant for Small Bone Fractures - OrthoPro

2.7mm Mini Straight Locking Plate | Small Fragment System & Orthopedic Trauma Implants | OrthoPro

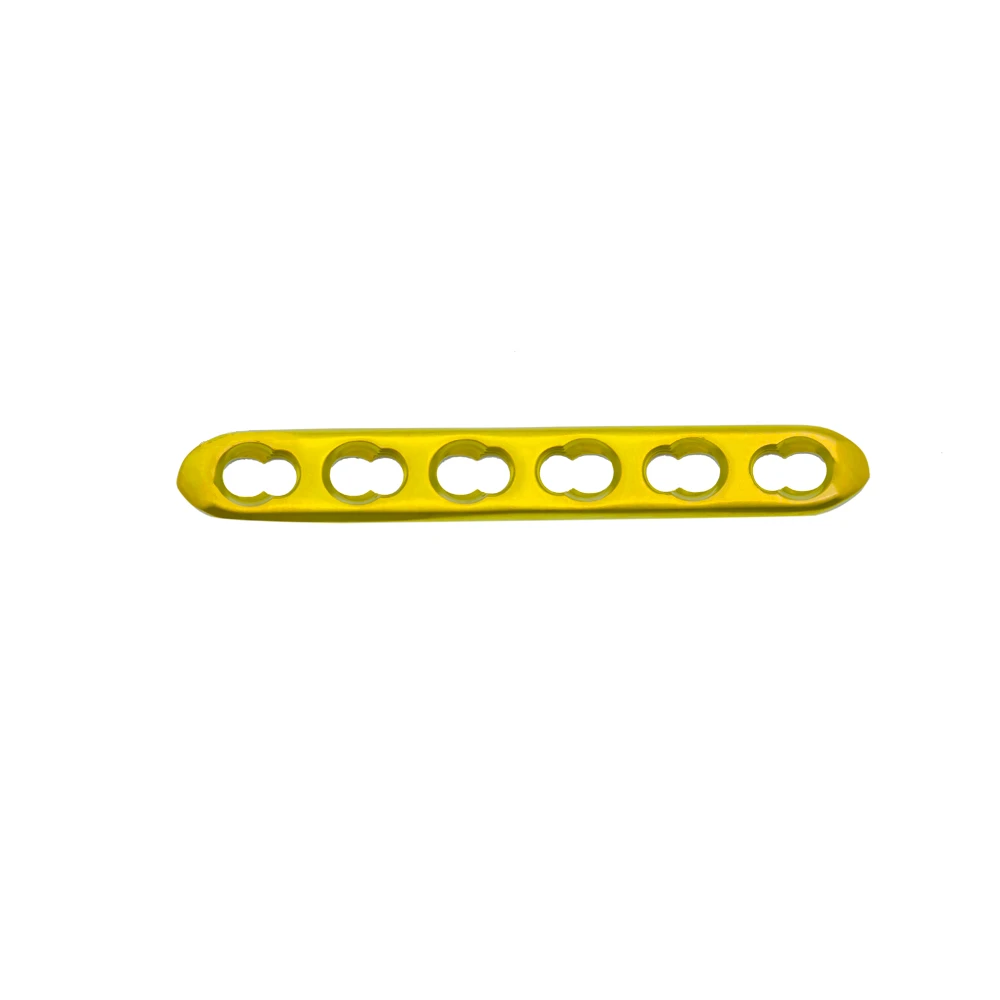

The 2.7mm Mini Straight Locking Plate is engineered for precise fixation in small bone fractures, including metacarpals, metatarsals, and phalanges. As a core component of the small fragment system, this mini straight locking plate offers an anatomical low-profile design to minimize soft tissue irritation. Manufactured with high-grade materials, our 2.7mm locking plate ensures superior stability for trauma reconstruction.

Advanced Solutions for Small Bone Fractures

At OrthoPro, we understand that precision is paramount in orthopedic surgery. Our 2.7mm Mini Straight Locking Plate is meticulously designed to address the complex needs of trauma surgeons worldwide. Specifically engineered for the fixation of fractures in small long bones—such as the metacarpals, metatarsals, and phalanges—this implant represents the gold standard in the Small Fragment System.

As a leading supplier of orthopedic implants, we prioritize bio-compatibility and mechanical strength. This plate system combines locking screw technology with a low-profile design, offering operative flexibility and stable fixation even in osteopenic bone.

Key Features and Surgical Benefits

The 2.7mm Mini Straight Locking Plate is not just a piece of metal; it is a solution for rapid patient recovery. Its features include:

Anatomical Contour: The plate is designed with a low profile to reduce prominence under the skin, significantly minimizing soft tissue irritation and post-operative discomfort.

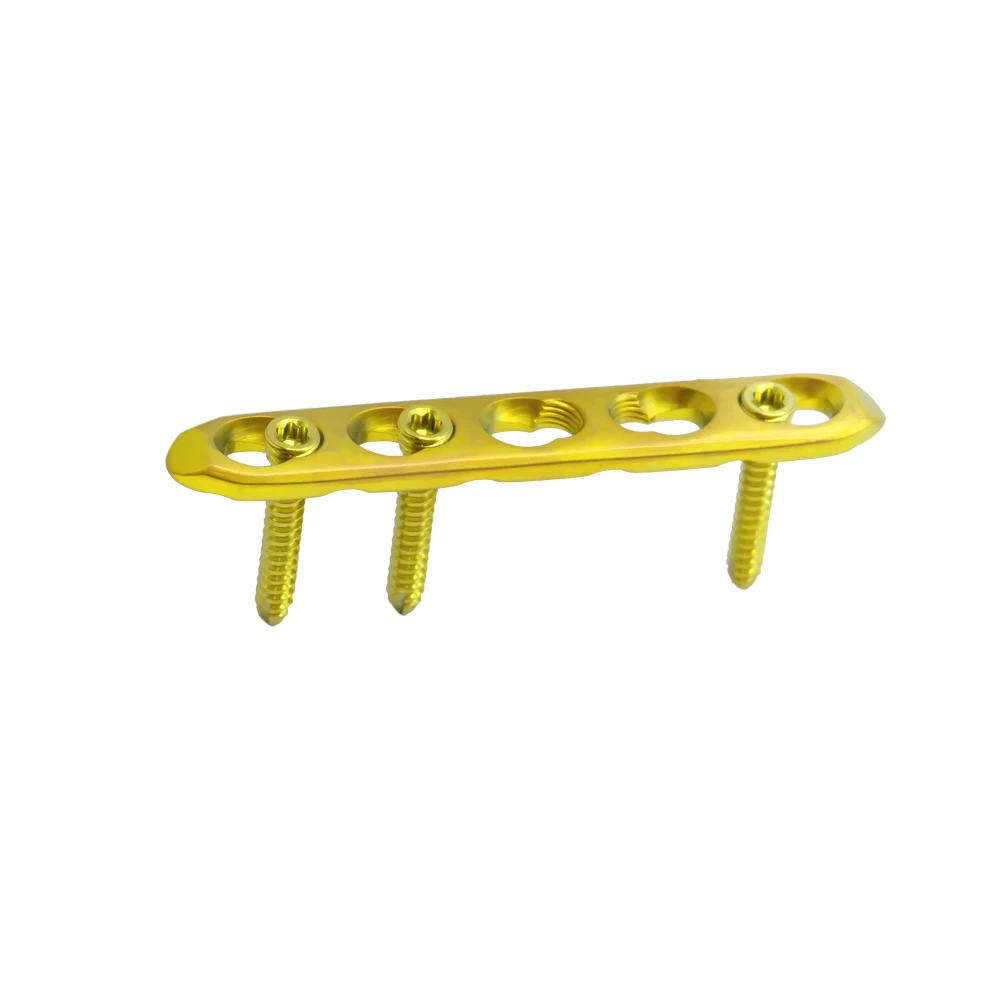

Combi-Hole Design: The plate holes accept both locking screws and cortex screws (2.7mm), allowing surgeons to choose between compression and angular stability based on the fracture pattern.
Versatile Application: Ideal for comminuted fractures, osteotomies, and arthrodesis of the hand and foot.
Rounded Edges: Tapered ends facilitate minimally invasive insertion, preserving the blood supply to the periosteum.

Material and Quality Assurance

Quality is the cornerstone of our manufacturing process. The mini straight locking plate is available in high-grade Titanium Alloy or Stainless Steel, meeting international ISO and ASTM standards. The locking mechanism ensures that the screw head locks securely into the plate, creating a fixed-angle construct that prevents screw back-out and loss of reduction.

Technical Specifications

Our product range accommodates various fracture lengths. Below are the standard technical parameters for the 2.7mm Mini Straight Locking Plate:

Parameter	Specification Details
System Size	2.7mm Mini Fragment System
Design Type	Straight Locking Plate
Number of Holes	Available in 2, 3, 4, 5, 6, 7, 8, up to 12 holes
Plate Thickness	2.0mm (Approx.)
Plate Width	8.0mm (Approx.)
Compatible Screws	2.7mm Locking Screws / 2.7mm Cortical Screws
Material Options	Titanium Alloy / Stainless Steel

Indications for Use

This implant is primarily indicated for:

Fractures of the phalanges and metacarpals.
Fractures of the distal ulna and radius (in specific pediatric or small anatomy cases).
Tarsal and metatarsal fractures.
Fixation of non-unions and malunions in small bones.

Why Choose OrthoPro?

We supply hospitals, clinics, and distributors globally with cost-effective, high-performance orthopedic solutions. By choosing the 2.7mm Mini Straight Locking Plate from OrthoPro, you are ensuring reliable surgical outcomes.

If you have specific customization requirements or need a bulk quotation, please do not hesitate to reach out. We offer competitive B2B pricing and global shipping.
