Anterior Cervical Plate System – Titanium Spine Fixation Implant Kit for ACDF Surgery | OrthoPro

Advanced Anterior Cervical Spine Fixation System for ACDF Procedures

At OrthoPro, we understand that precision and stability are paramount in spinal surgery. Our Anterior Cervical Plate System is engineered to meet the rigorous demands of anterior cervical discectomy and fusion (ACDF). Designed for orthopedic surgeons and trauma centers worldwide, this system combines biomechanical stability with intraoperative flexibility, ensuring optimal fusion rates for patients suffering from cervical spine instability.

Product Overview

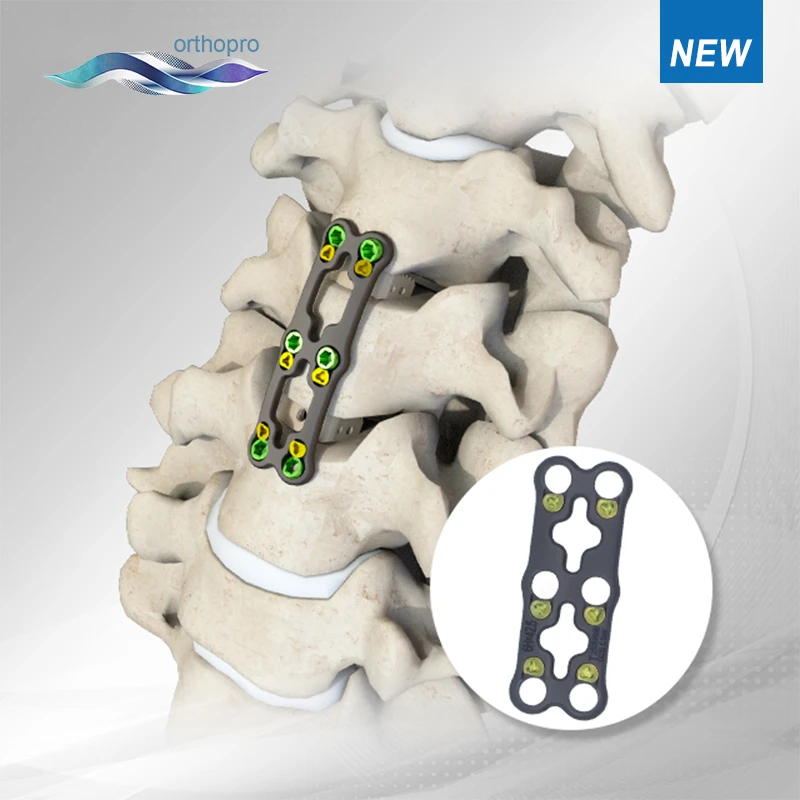

The OrthoPro Anterior Cervical Spine Fixation System is a comprehensive implant set designed for the stabilization of the cervical vertebrae (C2 to C7). Manufactured from high-grade Titanium Alloy (Ti6Al4V), the system offers excellent biocompatibility and fatigue strength. The system is characterized by its simplified instrumentation and anatomical plate design, which significantly reduces operative time while maximizing fixation security.

Key Features and Benefits

• Low-Profile Design: The anterior cervical plate features a thin, smooth profile (approx. 2.5mm thickness) to reduce esophageal irritation and minimize the risk of postoperative dysphagia.
• Secure Locking Mechanism: Our integrated locking system provides visual and tactile confirmation of screw locking. It effectively prevents screw back-out, a critical factor in long-term cervical spine fixation stability.
• Anatomical Pre-Contouring: Plates are pre-lordosed to match the natural curvature of the cervical spine, reducing the need for intraoperative bending and ensuring a better fit against the anterior vertebral body.
• Large Graft Window: The open design of the plate allows for maximum visualization of the bone graft and endplates, facilitating accurate placement and fusion assessment.
• Versatile Screw Options: The system supports both self-tapping and self-drilling screws, available in variable angle (allows restricted motion to promote fusion) and fixed angle (rigid construct) configurations.

Technical Specifications and Parameters

The OrthoPro cervical plate system is modular and adaptable to various patient anatomies. Below are the general technical parameters compatible with standard surgical requirements:

Plate Specifications:

• Material: Titanium Alloy / Medical Grade PEEK (Optional components)
• Levels: Available for 1-level, 2-level, 3-level, and 4-level fusions.
• Lengths: Ranges from 22mm to 105mm (incrementally sized for precision).
• Thickness: Ultra-low profile (2.1mm – 2.5mm).
• Width: Optimized to prevent lateral overhang.

Screw Specifications:

• Diameters: Standard 4.0mm and Rescue/Revision 4.5mm options.
• Lengths: 10mm to 20mm (in 2mm increments).
• Type: Variable Angle (up to 20° conical range) and Fixed Angle options.
• Drive Mechanism: Cruciform or Star-drive recess for high torque transmission without stripping.

Indications for Use

The OrthoPro Anterior Cervical Plate System is indicated for stabilization of the anterior cervical spine from C2 to C7 in skeletally mature patients. Common indications include:

• Degenerative Disc Disease (DDD) defined by neck pain of discogenic origin.
• Spondylolisthesis and Spinal Stenosis.
• Trauma (including fractures and dislocations).
• Tumors and deformities (Kyphosis, Lordosis, Scoliosis).
• Revision of previous cervical spine surgery.

Why Choose OrthoPro?

As a dedicated partner to the global medical community, OrthoPro ensures that every orthopedic implant undergoes rigorous quality control. Our manufacturing processes comply with international standards, delivering reliable solutions for distributors and healthcare providers.

Supply Chain & Logistics: We offer flexible ordering for B2B clients, including complete instrument sets and sterilization trays. Our logistics team ensures timely delivery to hospitals and distribution centers worldwide.

Contact Us for Pricing and Distribution

Enhance your surgical inventory with the OrthoPro Anterior Cervical Spine Fixation System. For technical data sheets, wholesale pricing, or partnership inquiries, please contact our international sales team.
