Rigid Ventral Stabilization for Complex Spinal Reconstruction

At OrthoPro, we specialize in delivering high-performance orthopedic solutions for complex spinal pathologies. Our Anterior Thoracolumbar Plate System is engineered to address the challenges of anterior column instability. Designed for orthopedic surgeons and trauma centers worldwide, this system provides a robust construct for stabilizing the thoracolumbar junction (T11-L5) following corpectomy or vertebrectomy procedures.

Product Overview

The OrthoPro Anterior Thoracolumbar Plate System is a comprehensive implant platform designed for the anterolateral surgical approach. It is primarily used to treat instability caused by trauma, tumors, or deformities where the anterior column’s load-bearing capacity is compromised. By fixing the spine from the anterior (front) or lateral side, the system allows for direct decompression of the spinal cord and rigid reconstruction of the vertebral column.

The system features a low-profile plate design manufactured from medical-grade Titanium Alloy (Ti6Al4V), ensuring excellent biocompatibility and MRI compatibility. Its streamlined instrumentation allows for efficient implantation, reducing operative time and blood loss.

Key Features and Surgical Benefits

• Low-Profile Design: The anterior thoracolumbar plate is designed with a minimal thickness to reduce interference with the great vessels (aorta and vena cava) and surrounding soft tissues. This smooth contour minimizes the risk of vascular erosion and irritation.
• Secure Locking Mechanism: The system utilizes an advanced locking screw technology. The screws lock securely into the plate, creating a fixed-angle construct that prevents screw back-out and provides superior resistance to pull-out forces, even in osteoporotic bone.
• Anatomical Adaptability: The plates are pre-contoured to match the natural lordosis and kyphosis of the thoracolumbar spine. They come in various lengths to bridge single or multiple vertebral levels, ensuring a precise fit for diverse patient anatomies.
• Versatile Screw Options: Our system includes both fixed-angle and variable-angle screws. Variable-angle screws allow for slight angulation during insertion to avoid vital structures or capture the best bone stock, while fixed-angle screws offer maximum construct rigidity.
• Graft Compression: The implant design allows for intraoperative compression of the bone graft or cage (such as a mesh cage or expandable cage), which is critical for promoting rapid bone fusion (arthrodesis) and maintaining spinal alignment.

Technical Specifications

The OrthoPro Thoracolumbar Plating System is modular and designed to meet global surgical standards. The parameters below reflect the versatility of the system:

• Material: Titanium Alloy (Ti6Al4V ELI) complying with ISO 5832-3 / ASTM F136.

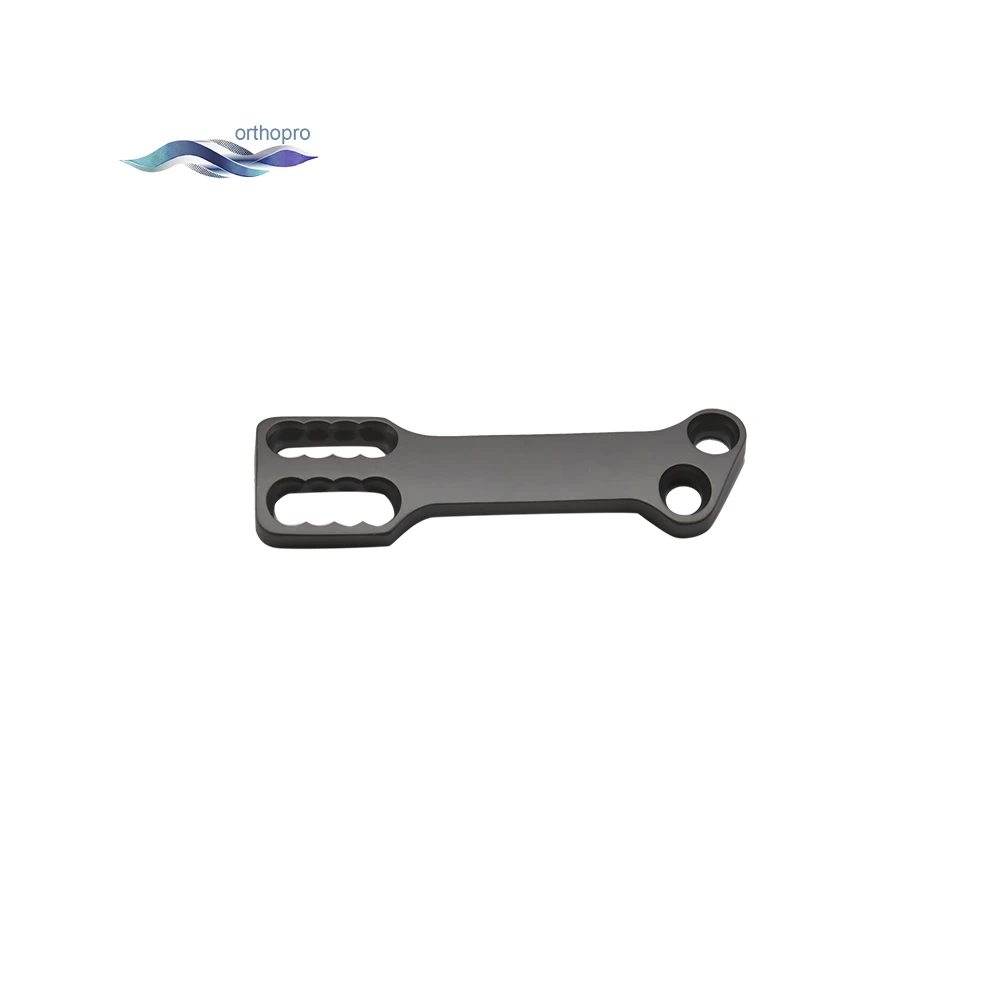

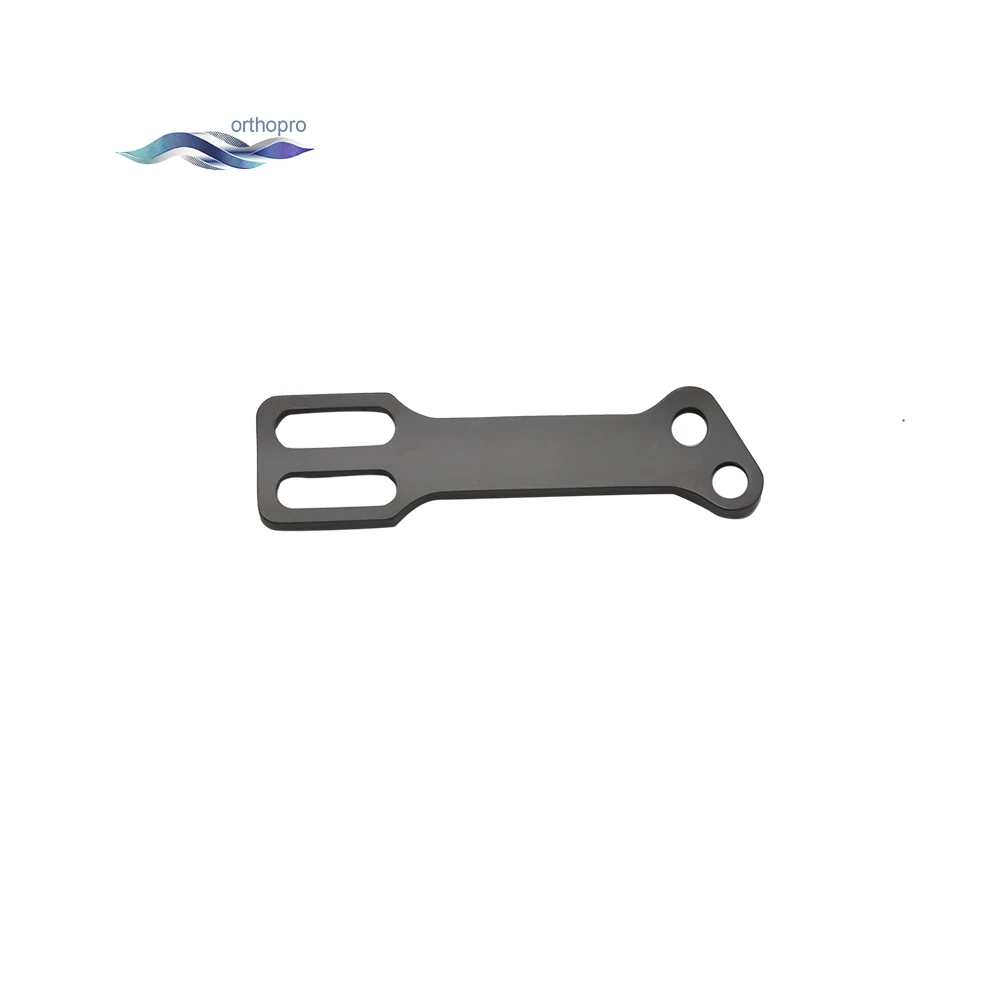

• Plate Lengths: Available in a wide range of sizes, typically from 40mm to 110mm (incrementally sized to span 1 to 2 levels).
• Screw Diameter: Ø6.0mm / Ø6.5mm (Standard for thoracolumbar vertebral bodies).
• Screw Lengths: 25mm to 60mm (in 5mm increments) to accommodate varying vertebral depths.

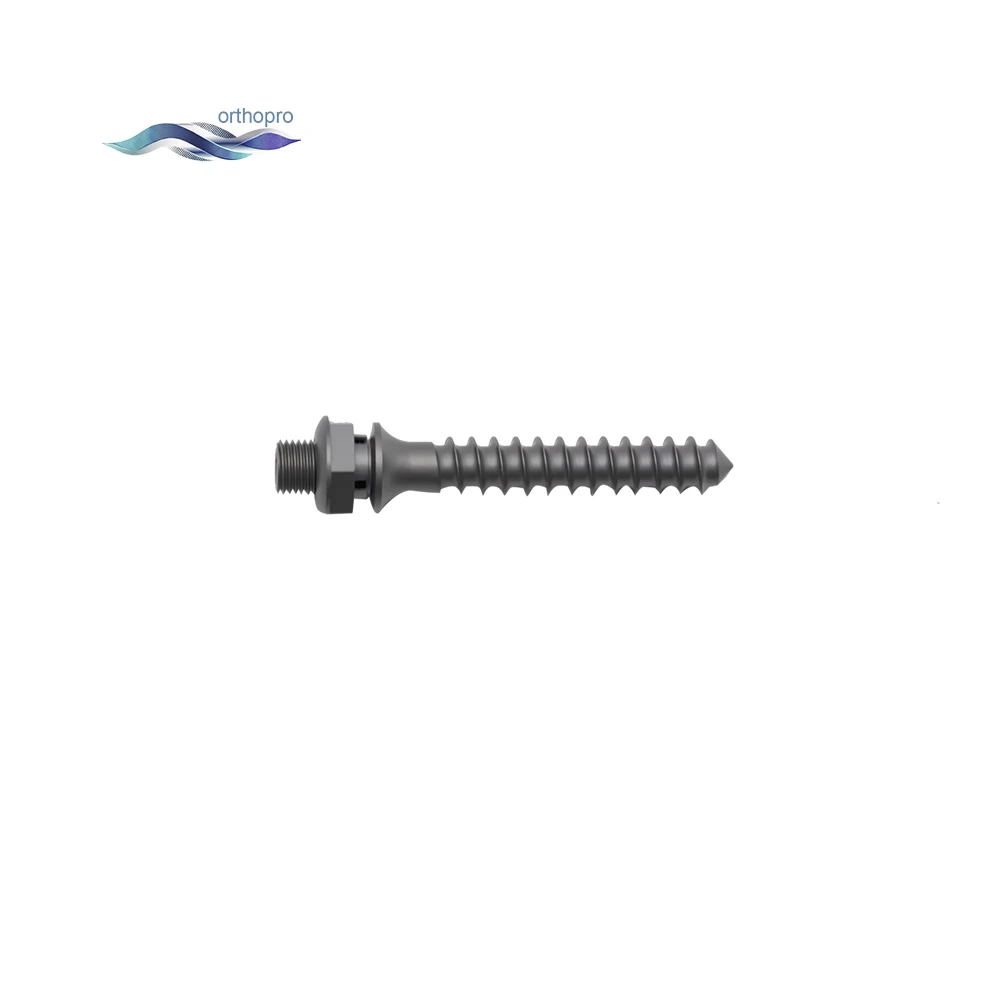

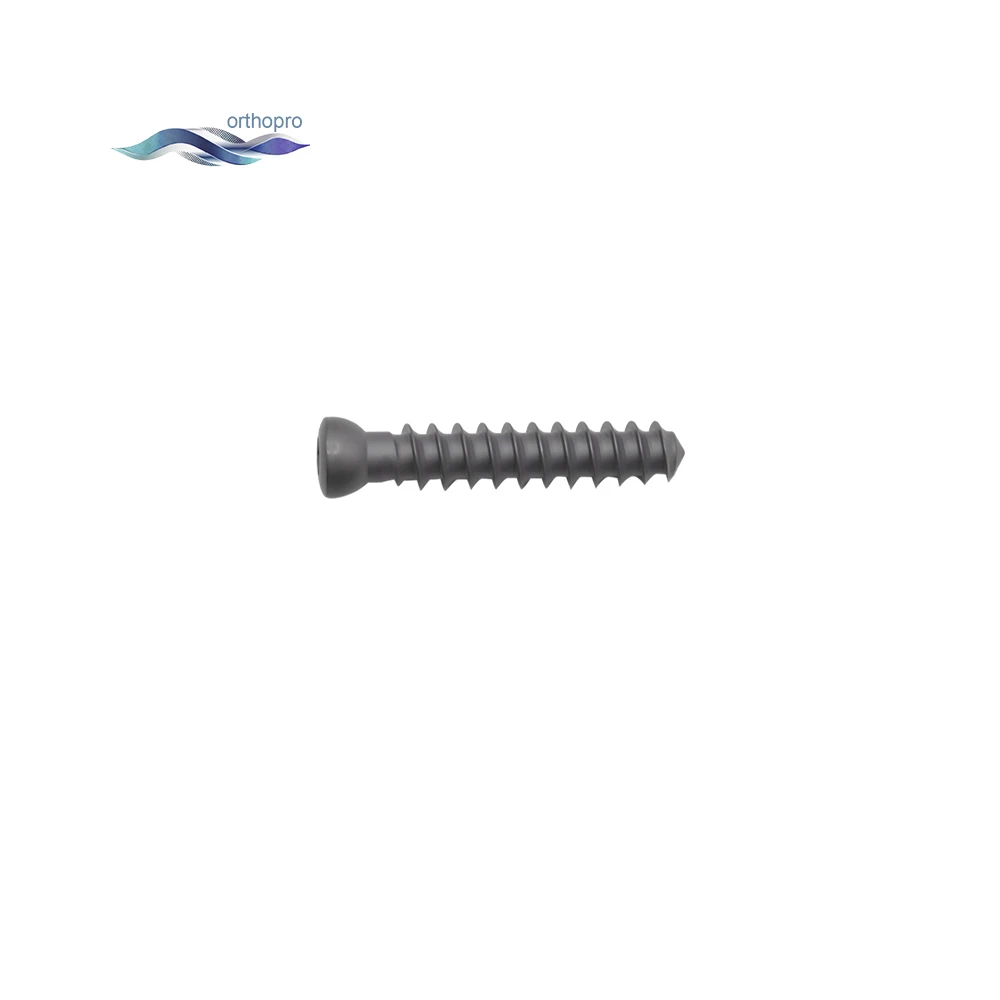

• Screw Type: Self-tapping, Locking, Bicortical capability.
• Locking Mechanism: Inner set screw or expansion head locking mechanism.

Indications for Use

The Anterior Thoracolumbar Plate System is indicated for anterolateral fixation of the T1-L5 spine (specifically optimized for T11-L5) in skeletally mature patients. It is used to provide stability in the following conditions:

• Fractures and dislocations of the thoracolumbar spine (Burst fractures).
• Tumors (Metastatic or Primary) requiring corpectomy.
• Degenerative deformities (Kyphosis, Scoliosis).
• Spinal instability due to infection (Spondylodiscitis) after debridement.
• Failed posterior fusion requiring anterior support.

Why Partner with OrthoPro?

Reliable Supply Chain: In the fast-paced medical industry, availability is key. OrthoPro ensures consistent stock levels of our spinal implants for our B2B partners, enabling you to support urgent trauma cases reliably.

Quality Assurance: All our products undergo strict quality control inspections and are sterilized and packaged to meet international regulatory standards.

Contact Us for Distribution and Pricing

Expand your spinal portfolio with the OrthoPro Anterior Thoracolumbar Plate System. We offer competitive wholesale pricing for distributors and hospitals. Contact our international sales team today for technical manuals and quotes.
