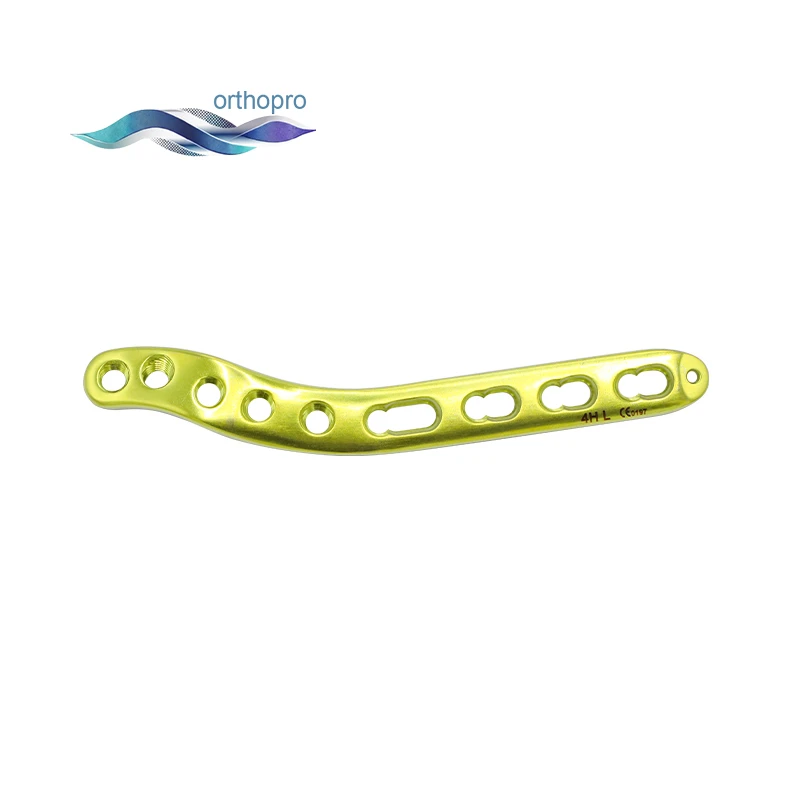

Distal Humeral Extra-articular Locking Plate – Anatomical Titanium Implant for Supracondylar and Distal Shaft Fractures

Advanced Distal Humeral Extra-articular Locking Plate for Complex Elbow Trauma

Welcome to OrthoPro, a global leader in the supply of high-quality orthopedic trauma implants. Our Distal Humeral Extra-articular Locking Plate is a specialized fixation system designed to address the specific biomechanical challenges of the distal humerus. Unlike standard straight plates, this implant is anatomically shaped to fit the posterolateral aspect of the distal humerus, bridging the transition from the diaphysis to the metaphysis. It is an essential tool for orthopedic surgeons treating fractures that do not disrupt the articular surface but require robust stabilization to allow early mobilization.

As a B2B partner for hospitals, distributors, and medical procurement teams, OrthoPro ensures that every Distal Humeral Extra-articular Locking Plate meets stringent international quality standards. We combine precision engineering with cost-effective manufacturing to support healthcare providers in delivering the best patient outcomes.

Optimized Anatomical Design

The distal humerus presents a complex geometry that is often difficult to plate with conventional hardware. Our plate features a sophisticated contour that respects the anatomy of the lateral column and the distal shaft. This pre-contoured design significantly reduces surgical time by eliminating the need for extensive plate bending during the procedure. The distal end of the plate is specifically tapered and shaped to maximize fixation in the limited bone stock of the supracondylar region without impinging on the olecranon fossa or irritating the triceps mechanism.

Key Features and Biomechanical Advantages

• Angular Stability: The system utilizes locking screw technology, creating a fixed-angle construct. This is particularly beneficial in osteoporotic bone where conventional screw purchase may be compromised. The locking mechanism prevents screw toggle and backing out, ensuring sustained compression and stability.
• Hybrid Fixation Flexibility: The plate holes are designed to accept both locking screws and non-locking cortical screws (Combi-holes or equivalent design). This allows the surgeon to lag fracture fragments together using cortical screws before locking the construct for neutralizers, providing a versatile approach to fracture reduction.
• Extra-articular Extension: Specifically designed for extra-articular fractures, the plate extends proximally up the humeral shaft. This long working length ensures adequate stress distribution across the fracture site, preventing stress risers and implant failure.
• Low Profile Construction: Soft tissue coverage in the distal arm is limited. Our plates feature a low-profile thickness and rounded edges to minimize soft tissue irritation and improve patient comfort post-surgery.
• Minimally Invasive Potential: The streamlined design facilitates insertion through smaller incisions if a minimally invasive plate osteosynthesis (MIPO) technique is preferred by the surgeon.

Indications for Use

The OrthoPro Distal Humeral Extra-articular Locking Plate is indicated for a variety of fracture patterns, including:

• Extra-articular fractures of the distal humerus (AO/OTA classification types).
• Supracondylar fractures extending into the diaphyseal shaft.
• Non-unions and malunions of the distal humeral shaft.
• Osteotomies of the distal humerus.
• Periprosthetic fractures around total elbow arthroplasty stems (depending on plate positioning and bone stock).

Technical Specifications

We offer a comprehensive range of specifications to accommodate different patient anatomies and fracture severities. While customization is available for large B2B orders, our standard technical parameters include:

• Material: Manufactured from high-strength Titanium Alloy (Ti-6Al-4V) or Medical Grade Stainless Steel, ensuring biocompatibility and fatigue resistance.
• Side Orientation: Available in anatomically distinct Left and Right configurations.
• Plate Lengths: Ranging from shorter plates (e.g., 4-6 holes) for localized supracondylar fractures to longer plates (e.g., 8-14 holes) for fractures extending proximally into the shaft.
• Screw Compatibility:
  • Distal holes: Typically compatible with smaller diameter locking screws (e.g., 3.5mm) to fit the metaphyseal bone.
  • Shaft holes: Compatible with standard locking and cortical screws (e.g., 3.5mm or 4.5mm depending on the specific system generation).
• Surface Finish: Anodized (Type II) for Titanium implants to increase surface hardness and reduce osseointegration complications during removal.

Why Partner with OrthoPro?

In the competitive landscape of orthopedic distribution, reliability and quality are paramount. OrthoPro stands out by offering:

• Consistent Supply Chain: We maintain robust inventory levels to ensure that your hospital or distribution network never faces stockouts during critical trauma seasons.
• Competitive Pricing Strategy: Our direct-from-manufacturer model eliminates unnecessary middlemen, providing you with high-margin opportunities without compromising on implant quality.
• Regulatory Compliance: All products undergo rigorous inspection and are manufactured in facilities compliant with ISO 13485 standards.

Equip your surgical teams with the best tools for elbow reconstruction. For detailed product catalogs, technical drawings, or to request a quote, please visit our Contact Us page. You can also reach our international sales team directly at info@orthopro.mx.

Discover our full range of upper extremity trauma solutions by visiting the OrthoPro Homepage.
