Advanced Minimally Invasive Pedicle Screw Instrument Set for MIS Spine Surgery

At OrthoPro, we are at the forefront of spinal surgical innovation. Our Minimally Invasive Pedicle Screw Instrument Set is a state-of-the-art solution designed to support Percutaneous Pedicle Screw Fixation. As the demand for Minimally Invasive Surgery (MIS) grows globally, this instrument set empowers surgeons to perform complex spinal stabilizations through small incisions, significantly reducing muscle stripping, blood loss, and postoperative pain compared to open procedures.

Precision Engineering for Percutaneous Techniques

The success of MIS procedures relies heavily on the precision of the instrumentation. Our Minimally Invasive Pedicle Screw Instrument Set is engineered to work seamlessly with cannulated polyaxial screws and long-tab (extended tower) screw systems. The instruments are crafted to provide tactile feedback and absolute control during blind (fluoroscopy-guided) insertions, ensuring safe navigation near critical neural structures.

Constructed from high-grade medical stainless steel and robust silicone composites, these instruments withstand the rigorous demands of orthopedic surgery and repeated sterilization cycles.

Comprehensive Set Configuration

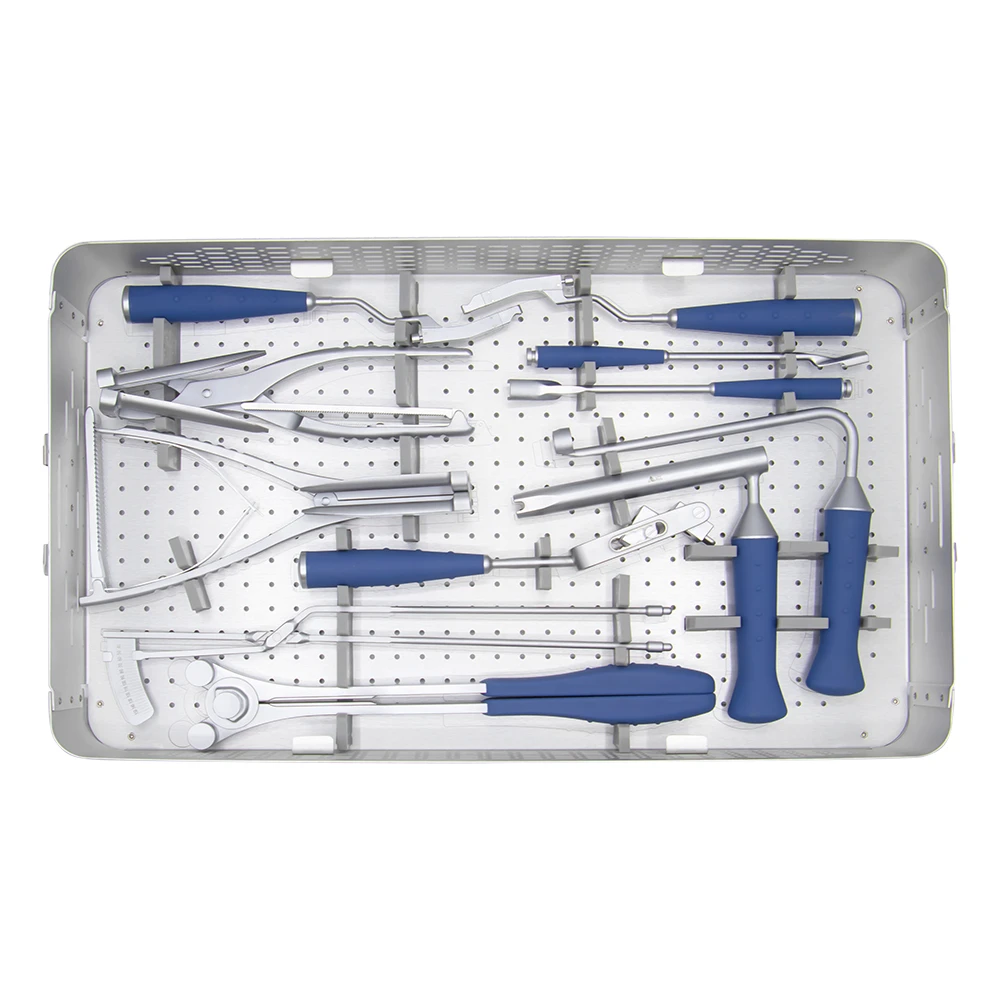

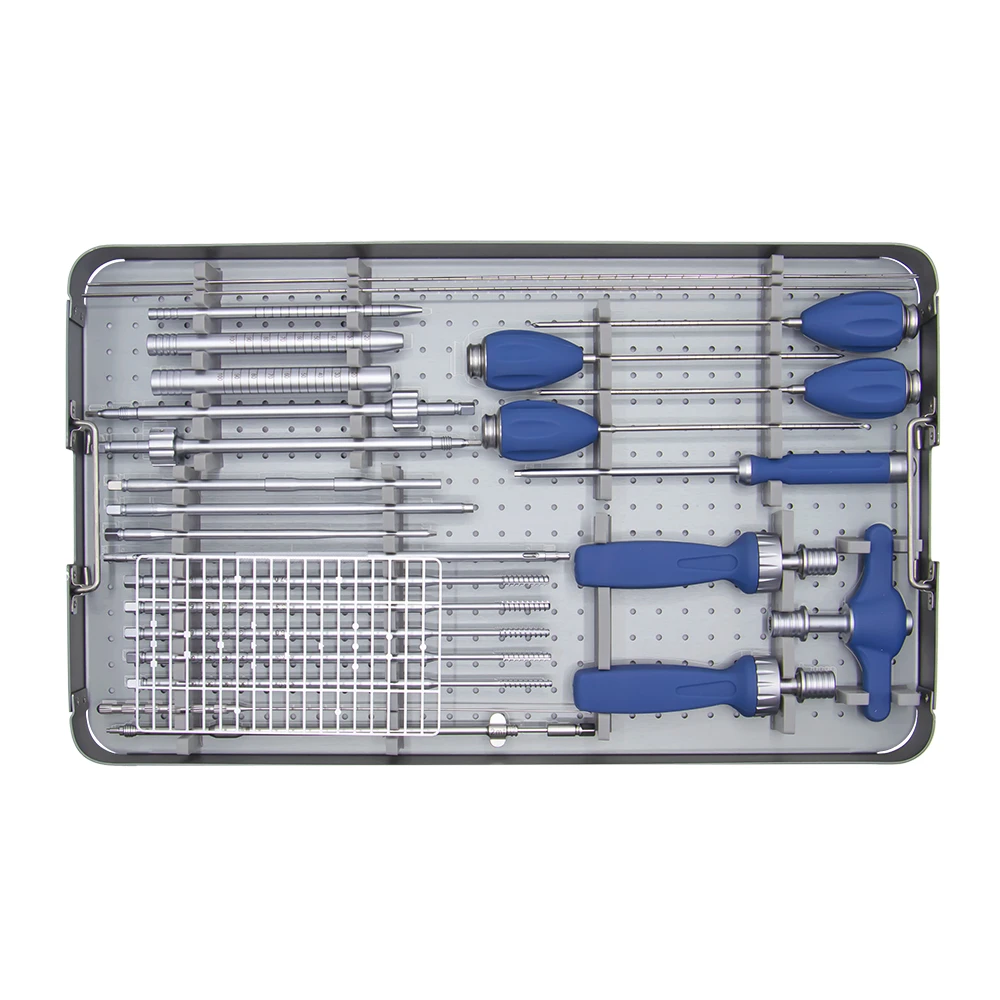

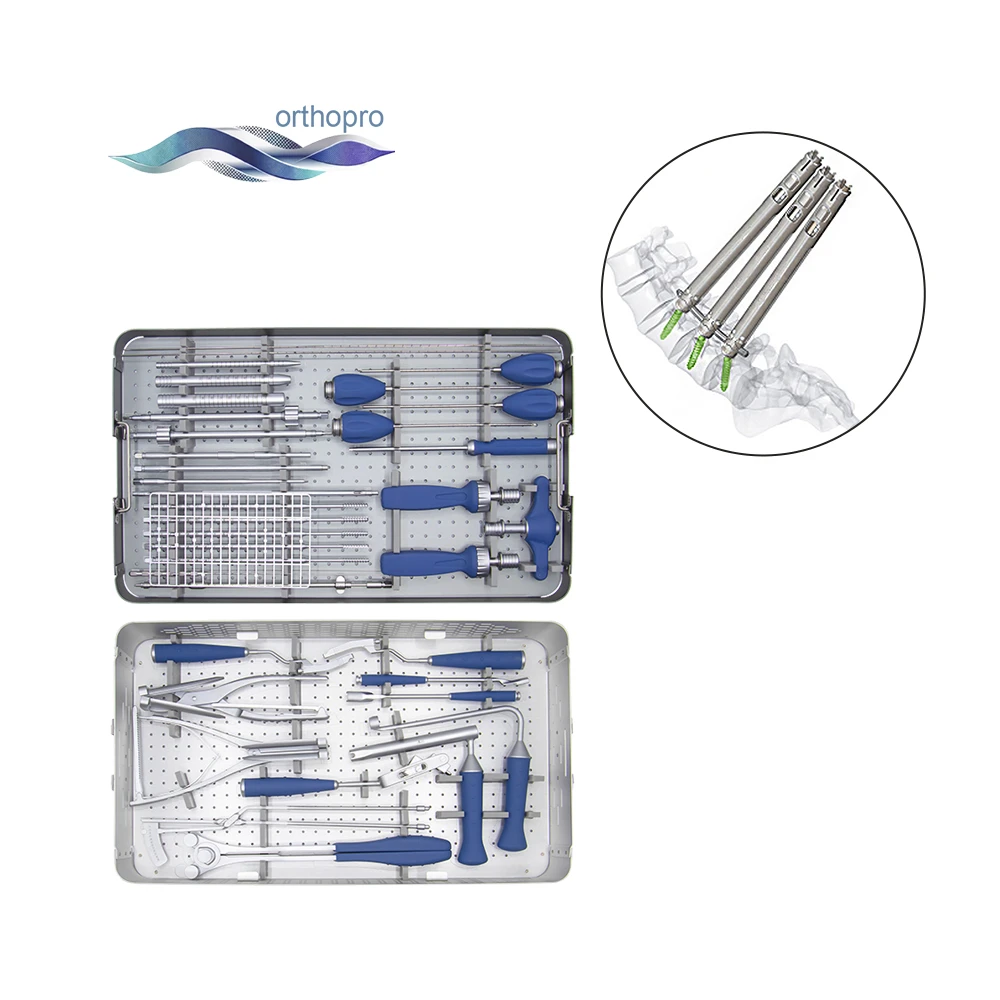

To facilitate a smooth surgical workflow, the set is organized logically in a graphic sterilization case. It includes all necessary tools for access, preparation, implantation, and final locking. Key components include:

1. Percutaneous Access and Path Creation

• Jamshidi Needles and Guide Wires: High-precision needles for initial transpedicular access, accompanied by stiff K-wires (Guide Wires) that resist kinking to guide cannulated instruments safely.
• Sequential Dilators: A series of nested dilators designed to gradually expand the soft tissue corridor without cutting muscle fibers, creating a working channel for tap and screw insertion.

2. Pedicle Preparation and Screw Insertion

• Cannulated Taps: Sharp, cannulated taps that glide over the guide wire to prepare the pedicle trajectory. Available in various diameters to match standard screw sizes.
• Cannulated Screwdrivers: Ergonomic drivers featuring a quick-coupling mechanism and a secure self-retaining tip. These drivers are designed to pass through the dilator tubes or percutaneous towers to drive the screw into the vertebral body with high torque transmission.
• Anti-Rotation Sleeves: Essential tools that stabilize the screw head during final tightening, preventing torque transfer to the spinal column.

3. Rod Delivery and Reduction

One of the most challenging steps in MIS surgery is inserting the connecting rod through the muscle fascia. Our set includes:

• Rod Inserters: specialized percutaneous rod inserters that allow for the controlled passage of pre-bent rods between the screw heads.
• Rod Pushers and Rockers: Instruments designed to seat the rod fully into the screw head (tulip) even in challenging anatomical alignments (spondylolisthesis reduction).

4. Final Locking and Tab Removal

• Torque Limiting Handles: Ensure the set screw is tightened to the exact specification required for long-term construct stability.
• Tab Breakers/Removers: Designed to cleanly snap off the extended tabs of the percutaneous screws after the assembly is locked, leaving a low-profile construct.
• Compressors and Distractors: Minimally invasive versions designed to apply necessary correction forces through the small incisions.

Clinical Advantages of the OrthoPro MIS System

Adopting the Minimally Invasive Pedicle Screw Instrument Set allows your surgical teams to offer superior patient care. The benefits of using our specialized instrumentation include:

• Preservation of Anatomy: Muscle-sparing approach preserves the multifidus muscle function.
• Reduced Infection Rate: Smaller incisions lead to lower risks of postoperative infections.
• Enhanced Visualization: Instruments are radiolucent-friendly or designed to not obstruct fluoroscopic views.
• Versatility: Compatible with most standard 5.5mm and 6.0mm cannulated screw systems used in the industry.

Partner with OrthoPro for Global Supply

OrthoPro is dedicated to serving B2B clients, including hospitals and medical distributors outside of China. We understand the importance of quality, consistency, and competitive pricing. Our **Minimally Invasive Pedicle Screw Instrument Set** is manufactured under strict quality control protocols to meet ISO and CE benchmarks.

We provide robust logistics solutions to ensure your inventory arrives safely and on time. Whether you are upgrading your hospital’s surgical capabilities or expanding your distribution portfolio, OrthoPro is your reliable partner.

Request Technical Specifications and Pricing

Equip your surgeons with the best tools for MIS spine surgery. For detailed product catalogs, bulk order pricing, and shipping information regarding the Minimally Invasive Pedicle Screw Instrument Set, please contact our sales team today.

For inquiries or to request a quote, please visit our Contact Us page or email us directly at info@orthopro.mx.
