S-clavicle Locking Plate | Titanium LCP System | Mid-shaft Clavicle Fracture Fixation

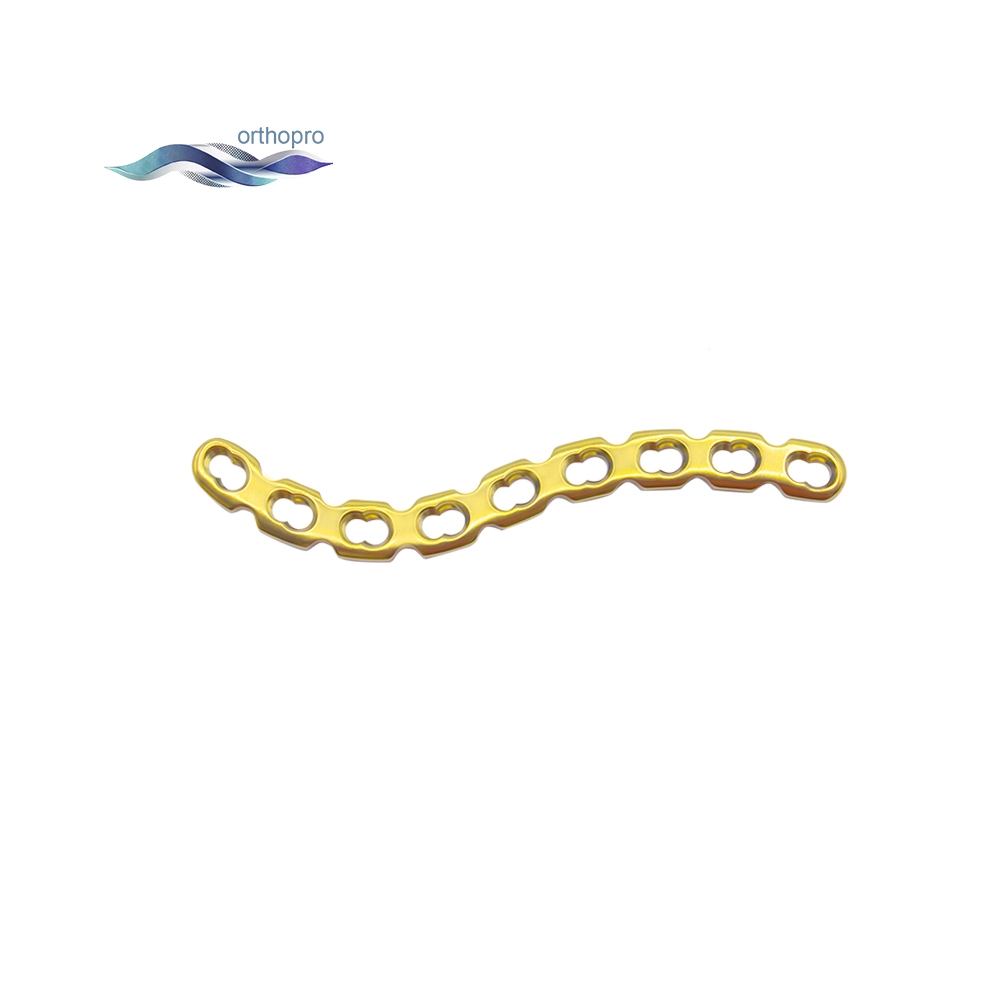

Anatomical S-clavicle Locking Plate for Mid-shaft Fractures

At OrthoPro, we are committed to delivering high-performance orthopedic solutions that address the specific anatomical challenges of trauma surgery. Our S-clavicle Locking Plate is a specialized implant designed for the internal fixation of the clavicle (collarbone). Recognizing the complex, multi-planar curvature of the clavicle, we have engineered this plate to provide an anatomical fit that reduces the need for intraoperative bending, saving valuable surgical time and preserving the mechanical integrity of the plate.

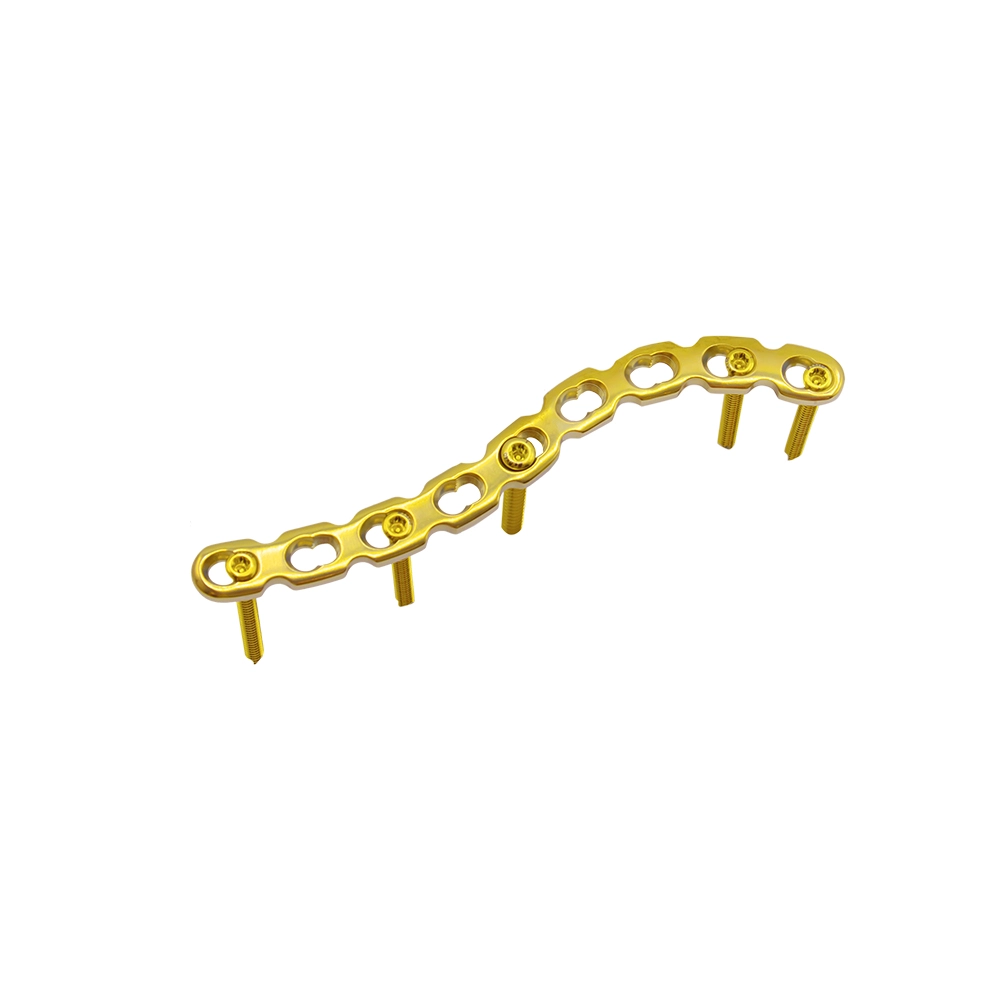

The OrthoPro S-shaped clavicle plate is part of our comprehensive Small Fragment Locking Compression Plate (LCP) system. It is specifically intended for superior anterior placement on the mid-shaft of the clavicle. By combining locking screw technology with a pre-contoured “S” shape, this system offers rigid fixation even in comminuted fractures or osteopenic bone, ensuring early mobilization for the patient.

Key Design Features and Surgical Benefits

Our S-clavicle Locking Plate is manufactured with precision to ensure optimal clinical outcomes. The design incorporates several advanced features:

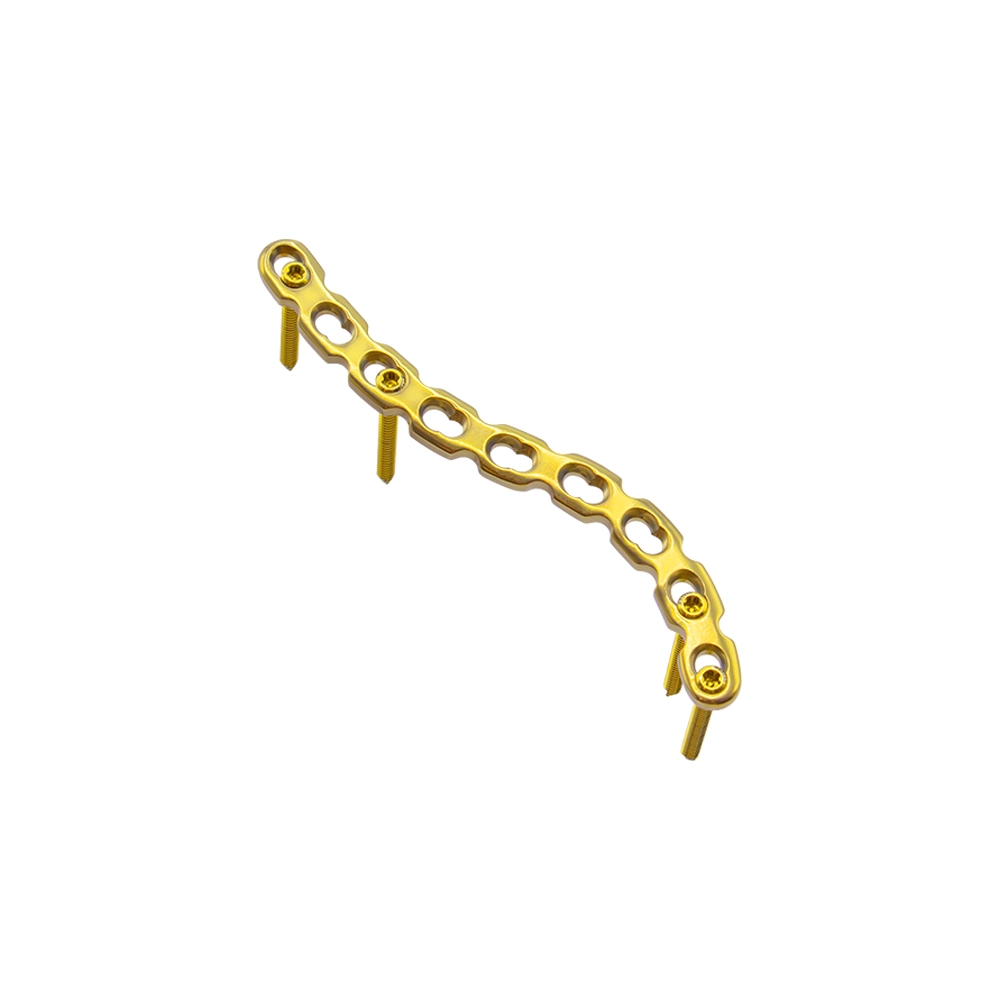

• Anatomical S-Shape: The plate is pre-contoured to match the natural sigmoid curve of the superior aspect of the clavicle. This “S” shape minimizes the gap between the plate and the bone, ensuring a low-profile construct that reduces soft tissue irritation and postoperative prominence.
• Combi-Hole Technology: The plate features figure-of-eight holes that accommodate both standard cortical screws (for dynamic compression) and locking screws (for angular stability). This hybrid design allows the surgeon to customize the fixation strategy based on the fracture pattern and bone quality.
• Superior Angular Stability: The threaded section of the combi-hole locks with the screw head, creating a fixed-angle construct. This is particularly advantageous in the clavicle, where torsional forces can cause screw loosening in conventional plating.
• Low-Profile Design: The edges of the plate are rounded and the overall thickness is minimized to reduce the risk of skin irritation, which is a common complication in clavicle surgery due to the thin subcutaneous tissue coverage.
• Versatile Fixation: The plate accepts 3.5mm cortical screws and 3.5mm locking screws, making it compatible with standard small fragment instrument sets.
• Material Excellence: Available in Medical Grade Titanium Alloy (Ti-6Al-4V) for superior biocompatibility and MRI safety, or Implant-Grade Stainless Steel (316L) for high mechanical rigidity.

Clinical Indications

The S-clavicle Locking Plate is indicated for the fixation of fractures, malunions, and non-unions of the clavicle. It is specifically optimized for:

• Mid-shaft Clavicle Fractures: Simple, wedge, and complex comminuted fractures (AO/OTA classification type 15-A, B, and C).
• Osteotomies: Corrective surgeries for clavicle malunion.
• Non-Unions: Providing stable fixation to promote bone healing in delayed union cases.

Technical Specifications

Our plates are manufactured to adhere to international dimensional standards, ensuring compatibility with standard AO-type instruments. Below are the technical parameters for the OrthoPro S-clavicle Locking Plate:

Why Partner with OrthoPro?

OrthoPro is your trusted B2B partner for orthopedic supplies. We focus on delivering value to medical distributors and hospitals by offering high-quality trauma implants at competitive manufacturer prices.

Rigorous Quality Control: Every clavicle locking plate undergoes strict testing, including visual inspection, dimensional verification, and surface finish analysis. We ensure that our implants are free from burrs and contaminants, meeting the highest standards of safety.

Reliable Global Supply: We understand the importance of inventory availability. We maintain a robust stock of standard sizes (Left/Right) to ensure quick turnaround times for your orders, helping you serve your local surgeons effectively.

Order Information and Contact

We offer flexible packaging solutions (sterile or non-sterile) and competitive wholesale pricing. Whether you are equipping a trauma center or expanding your product line, our team is here to assist.

Request a Quote Today: Get the best pricing for high-quality clavicle implants.

Contact Us for Pricing

For detailed catalogs or technical support, please email us at: info@orthopro.mx
