Titanium Supra-ankle Osteotomy Locking Plate | Medial Distal Tibia SMO System

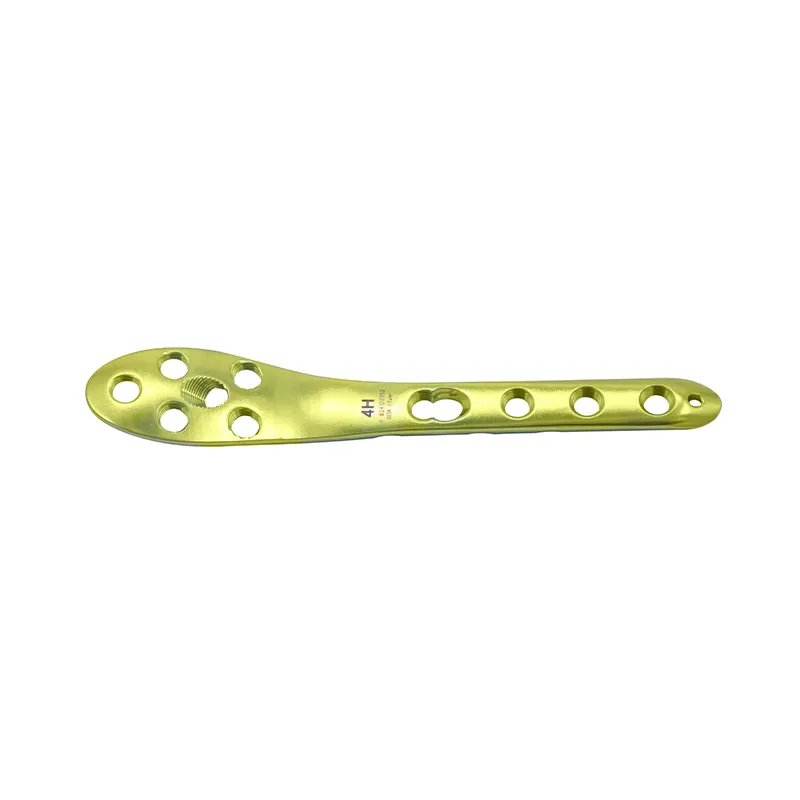

Overview of the Supra-ankle Osteotomy Locking Plate

In the specialized field of lower limb reconstruction, preserving the natural joint is often the gold standard. OrthoPro introduces the Supra-ankle Osteotomy Locking Plate, a specialized orthopedic implant designed specifically for Supramalleolar Osteotomy (SMO) procedures. This system addresses asymmetric ankle arthritis and distal tibial deformities, offering surgeons a viable alternative to ankle fusion or total ankle replacement.

The supra-ankle plate is engineered to stabilize the osteotomy site on the medial aspect of the distal tibia. By correcting the mechanical axis of the lower leg, this SMO locking system redistributes weight-bearing forces away from damaged cartilage to healthier areas of the joint. As a dedicated B2B partner, OrthoPro supplies this critical fixation technology to hospitals and medical distributors worldwide, ensuring high-quality standards and reliable clinical outcomes.

Anatomical Design and Biomechanical Stability

The success of a supramalleolar osteotomy depends heavily on the implant’s ability to maintain the correction angle while allowing the bone to heal. Our Supra-ankle Osteotomy Locking Plate features a sophisticated design tailored to the unique anatomy of the distal tibia:

• Anatomical Contouring: The plate is pre-contoured to match the complex curvature of the medial distal tibia. This precise fit reduces the need for intraoperative bending, shortens surgical time, and minimizes hardware prominence—a crucial factor in the ankle region where soft tissue coverage is thin.
• Optimized Locking Fixation: The system utilizes a locking screw mechanism that creates a fixed-angle construct. This is particularly beneficial in osteotomies where the proximal and distal bone fragments must be held rigidly in a corrected position to prevent loss of reduction.
• Proximal and Distal Stability: The distal end of the plate is widened to accommodate multiple locking screws, ensuring a secure hold in the epiphyseal/metaphyseal bone block. The proximal shaft provides extended fixation to bridge the osteotomy gap effectively.
• Low-Profile Architecture: To reduce the risk of wound complications and skin irritation, the plate features rounded edges and a low-profile thickness, enhancing patient comfort during the healing phase.

Clinical Indications and Applications

The Supra-ankle Osteotomy Locking Plate is indicated for a range of pathologies requiring realignment of the distal tibia. Common clinical scenarios include:

• Varus or Valgus Deformities: Correction of malalignment in the coronal plane to restore the mechanical axis.
• Early to Mid-stage Ankle Osteoarthritis: Offloading the affected compartment in asymmetric arthritis to delay the need for joint replacement or fusion.
• Post-traumatic Malunion: Correcting deformities resulting from previous tibial fractures.
• Joint Preservation Surgery: Used in conjunction with cartilage repair procedures to optimize the biological environment for healing.

Surgical Advantages for the B2B Market

For procurement officers and medical device distributors, the OrthoPro distal tibia osteotomy plate offers significant value. The system is designed for ease of use, featuring intuitive instrumentation that simplifies the surgical workflow. The availability of specific Left and Right plates ensures anatomical accuracy for every patient.

Furthermore, the locking technology allows for the use of monocortical screws in certain areas, preserving the periosteal blood supply and reducing the risk of thermal necrosis during drilling. This focus on biological fixation promotes faster bone union and better patient outcomes.

Technical Specifications

OrthoPro adheres to strict quality management systems to ensure product consistency. While customization is available for bulk orders, our standard specifications for the Supra-ankle Osteotomy Locking Plate include:

• Material: Medical-grade Titanium Alloy (Ti-6Al-4V) or Pure Titanium (ISO 5832-2/3).
• Screw Configuration: Designed for use with standard Locking Screws and Cortical Screws (typically 3.5mm or 4.0mm system compatibility).
• Hole Design: Combi-holes or threaded locking holes allowing for compression or locking options depending on the fracture/osteotomy pattern.
• Lengths: Available in various hole configurations (e.g., 4, 5, 6 holes) to suit different tibial lengths and patient heights.
• Sterilization: Products can be supplied non-sterile (autoclavable) or in sterile packaging upon request.

Partner with OrthoPro

At OrthoPro, we understand that reliability and cost-effectiveness are key drivers in the B2B medical market. We are not just a manufacturer; we are a strategic partner committed to supporting your supply chain. Our logistics network ensures timely delivery to non-China regions, and our technical team is ready to assist with regulatory documentation and product training.

Stocking the Supra-ankle Osteotomy Locking Plate demonstrates a commitment to advanced joint preservation techniques. We offer competitive wholesale pricing and flexible Minimum Order Quantities (MOQ) to help your business grow.

To request a catalog, discuss pricing, or learn more about our complete range of lower limb solutions, please visit our Contact Us page or email our sales team directly at info@orthopro.mx.
