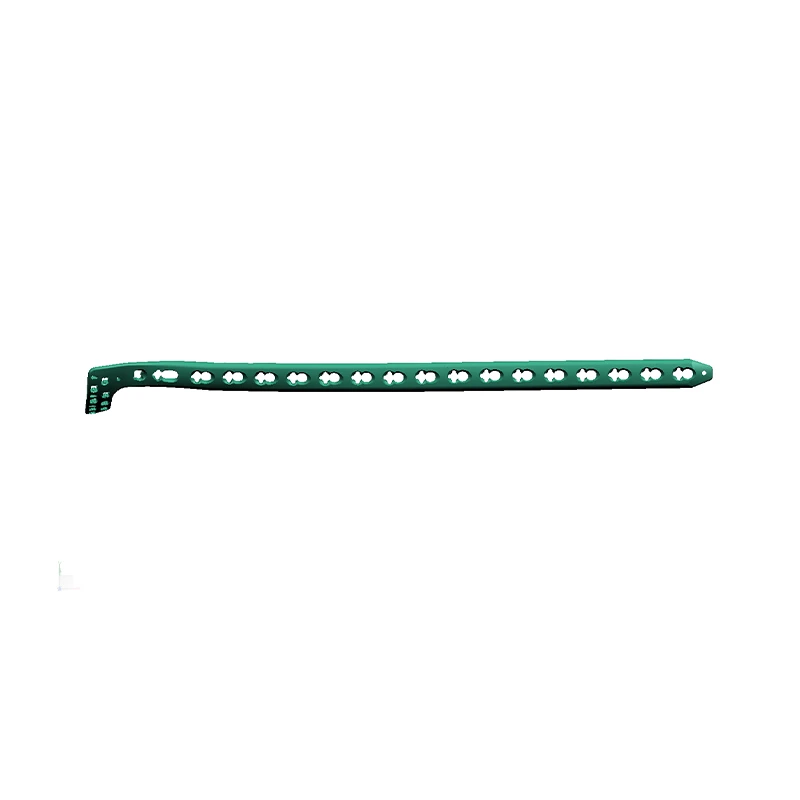

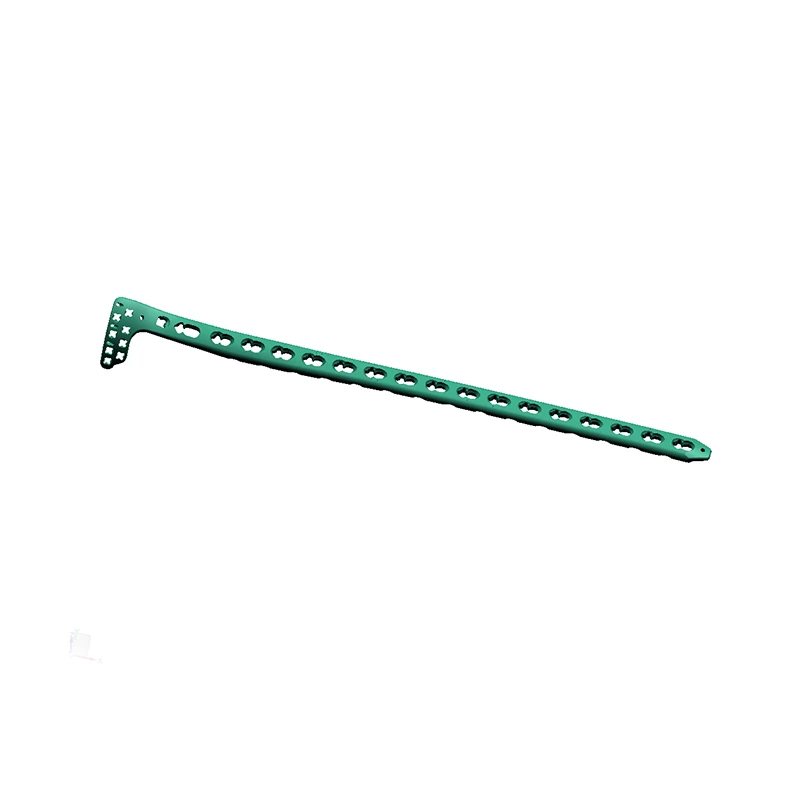

VA Distal Lateral Tibia Locking Plate | Variable Angle Anterolateral System for Pilon Fractures

Advanced Fixation for Anterolateral Tibial Fractures

The VA Distal Lateral Tibia Locking Plate is a specialized implant in OrthoPro’s comprehensive trauma portfolio, engineered to address the distinct challenges of fractures affecting the lateral column of the distal tibia. Commonly used for anterolateral Pilon fractures (AO/OTA 43-B and 43-C types) and distal shaft fractures, this system provides a robust solution where medial plating alone is insufficient. As a trusted B2B partner for medical distributors and hospitals worldwide, OrthoPro delivers high-precision implants that combine the mechanical strength of locking technology with the surgical versatility of variable angle screw placement.

Fractures of the distal tibia often involve complex articular comminution and compromised soft tissue envelopes. Our VA Distal Lateral Tibia Locking Plate is designed to fit the unique anatomy of the anterolateral tibia (Chaput tubercle region), providing a stable buttress against shear forces while minimizing hardware prominence. This is essential for preventing skin complications and ensuring early mobilization for patients.

Variable Angle Technology and Surgical Flexibility

The core advantage of this system lies in its Variable Angle (VA) locking holes. Unlike standard locking plates that dictate a fixed screw trajectory, the OrthoPro VA system empowers surgeons to angle locking screws up to 15 degrees off-axis in any direction. This 30-degree cone of freedom allows for:

• Targeted Fragment Capture: Surgeons can direct screws to capture specific small articular fragments that are critical for joint reconstruction.
• Avoidance of Obstacles: The flexibility helps in avoiding joint penetration, existing hardware, or other screws when using a dual-plating technique (medial and lateral).
• Optimized Purchase: In osteopenic or osteoporotic bone, the ability to angle screws allows for maximum thread engagement in the best quality bone stock available.

Anatomical Contour and Low Profile Design

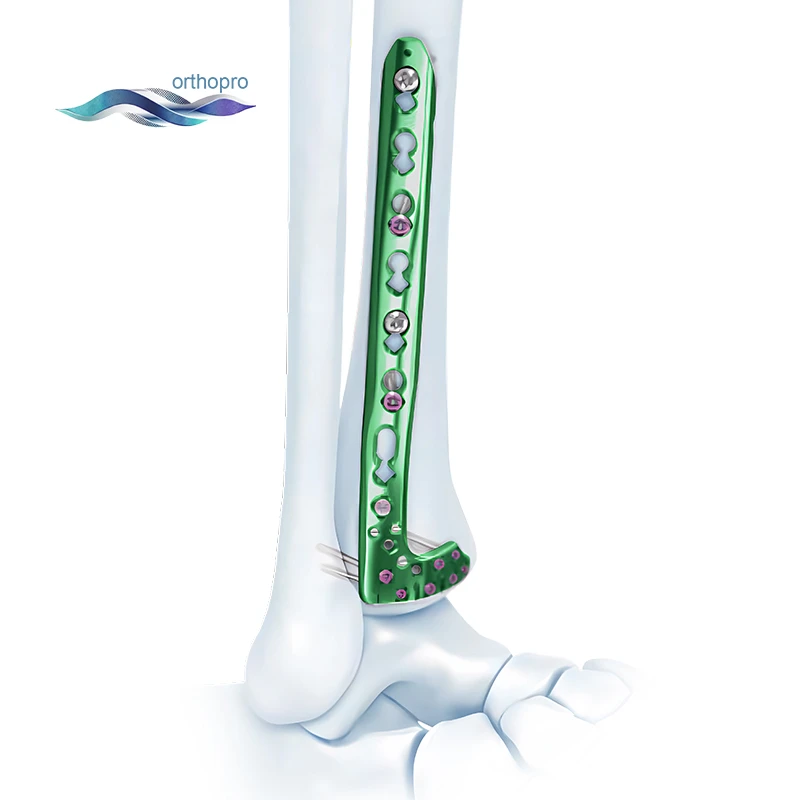

The VA Distal Lateral Tibia Locking Plate is pre-contoured to match the S-shaped curvature of the lateral distal tibia. This anatomical fit reduces the need for intraoperative bending, which saves valuable surgical time and preserves the mechanical integrity of the plate. The distal end is tapered and low-profile to sit comfortably under the extensor tendons and neurovascular structures, significantly reducing the risk of soft tissue irritation.

Clinical Indications

This plating system is indicated for the fixation of fractures, osteotomies, and non-unions of the distal tibia, specifically:

• Distal tibial shaft fractures extending into the joint.
• Intra-articular fractures (Pilon fractures) involving the anterolateral column.
• Fractures of the lateral tibial plafond (Tillaux-Chaput fractures).
• Non-unions and malunions requiring corrective osteotomy.
• Situations requiring dual-plating (used in conjunction with a medial plate) to prevent varus/valgus collapse.

Technical Specifications

OrthoPro manufactures implants according to rigorous international standards. The VA Distal Lateral Tibia Locking Plate utilizes a hybrid hole configuration to maximize surgical options. Below are the general technical parameters compatible with this system.

Manufacturing Quality and Global Supply

Quality assurance is the backbone of OrthoPro. Our manufacturing facility utilizes advanced 5-axis CNC machining to ensure that every locking thread is cut to precision. The surfaces are treated (anodized for Titanium) to enhance fatigue strength and biocompatibility. Each VA Distal Lateral Tibia Locking Plate undergoes strict inspection before packaging to ensure it meets the demands of modern trauma surgery.

We are dedicated to supporting the global medical community. Whether you are a distributor in Europe, Latin America, or Southeast Asia, OrthoPro offers competitive factory-direct pricing, low Minimum Order Quantities (MOQ), and reliable shipping logistics. We also provide OEM services for partners looking to build their own private label brands.

Why Partner with OrthoPro?

• Expertise: Years of experience in orthopedic trauma manufacturing.
• Cost-Efficiency: Direct supply chain management reduces your procurement costs.
• Support: Full technical datasheets and instrument compatibility guides available.

Contact Us for a Quote

Enhance your orthopedic product line with the VA Distal Lateral Tibia Locking Plate. Contact our sales team today for a comprehensive price list and catalog.

Request a Quote

Email: info@orthopro.mx
