VA Distal Tibia Locking L-Plate | Variable Angle System for Complex Pilon Fractures | OrthoPro Implants

Advanced Fixation for Complex Distal Tibial Fractures

The VA Distal Tibia Locking L-Plate is a versatile component of OrthoPro’s comprehensive trauma portfolio, specifically engineered to address the difficult fixation requirements of the distal tibia. This implant is particularly effective for fractures extending into the joint, such as Pilon fractures, where standard straight plates may not provide adequate coverage or support. As a dedicated B2B supplier for international medical distributors and healthcare institutions, OrthoPro combines precision manufacturing with advanced biomechanical engineering to deliver implants that surgeons can trust.

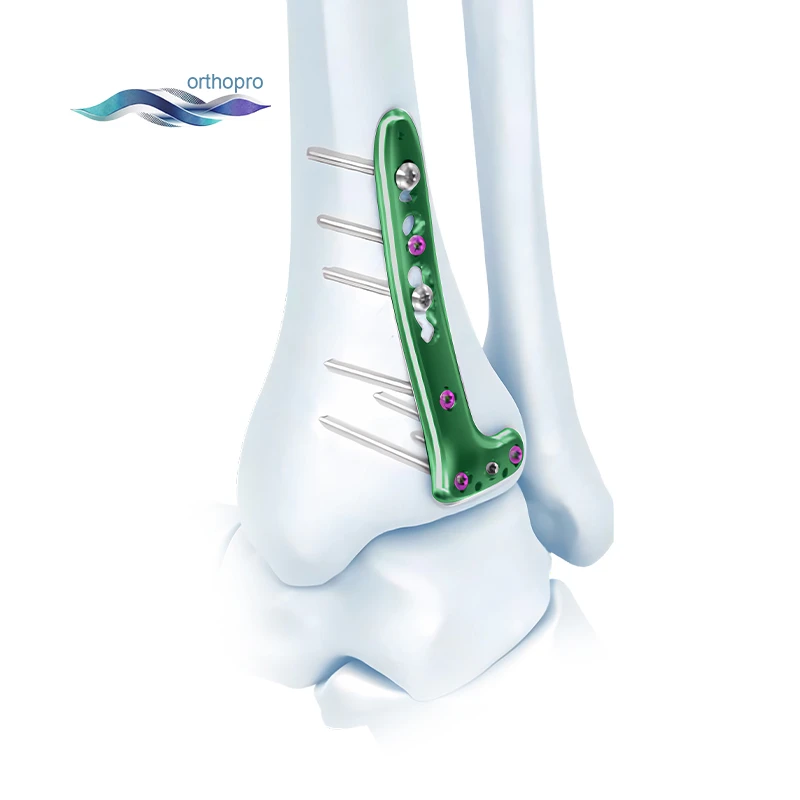

Designed to fit the unique anatomy of the distal tibia, the VA Distal Tibia Locking L-Plate utilizes Variable Angle (VA) technology. This feature allows the surgeon to angle locking screws up to 15 degrees off-axis, creating a three-dimensional fixation construct. This is crucial for capturing small bone fragments in comminuted fractures and for avoiding joint penetration or other hardware in complex multi-plate constructs.

Key Features and Surgical Benefits

• Variable Angle Locking Technology: The head of the plate features variable angle locking holes. Surgeons can direct screws within a 30-degree cone, offering flexibility to adapt to the specific fracture pattern and bone quality of the patient.

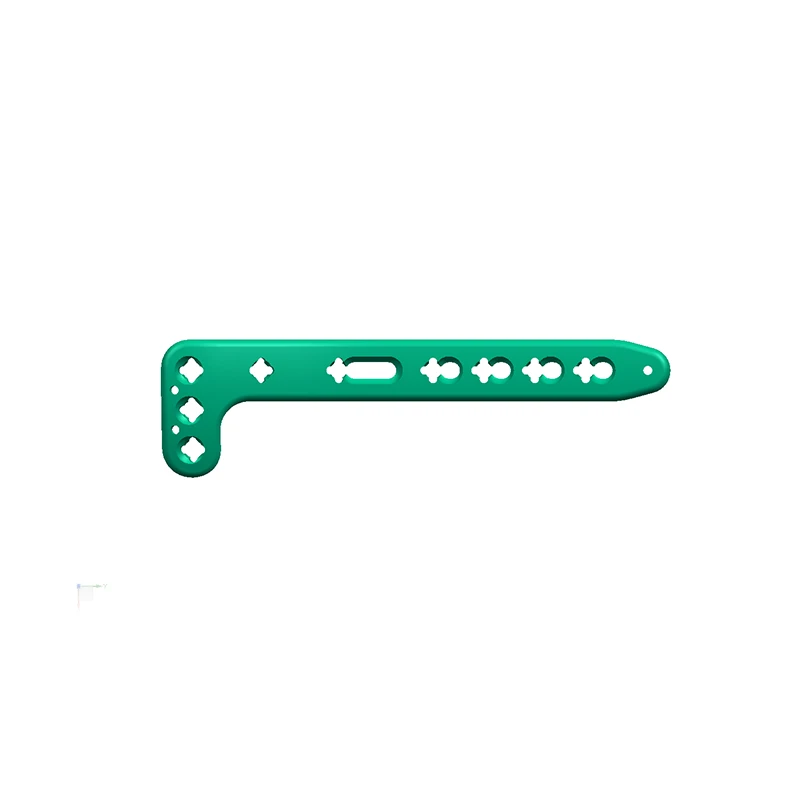

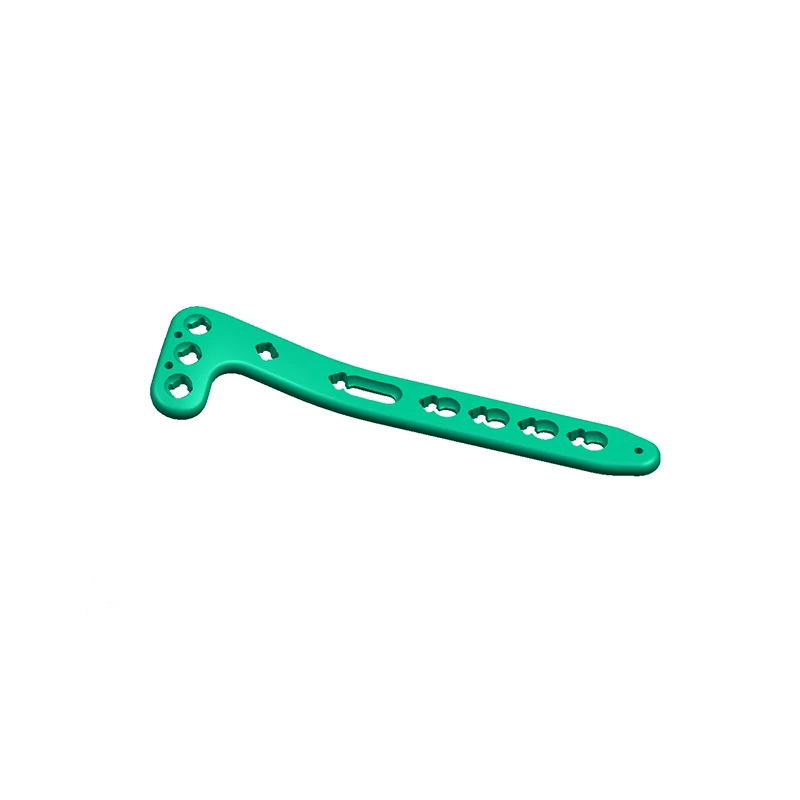

• Anatomical L-Shape Design: The L-configuration is designed to provide buttress support to the medial malleolus or anterolateral aspect of the tibia. This shape mimics the natural contour of the bone, reducing the need for intraoperative plate bending and minimizing surgical time.
• Low-Profile Construction: The distal tibia has minimal soft tissue coverage. Our plate features a tapered, low-profile design with rounded edges to reduce soft tissue irritation and the risk of wound complications, which is vital for patient recovery.
• Versatile Hole Configuration: The shaft utilizes combi-holes that accept both locking screws for angular stability and cortical screws for dynamic compression. This dual-functionality allows surgeons to achieve interfragmentary compression and stable fixation with a single implant.
• K-Wire Compatibility: Integrated Kirschner wire holes assist in temporary fixation and precise plate positioning before final screw insertion.

Clinical Indications

The OrthoPro VA Distal Tibia Locking L-Plate is indicated for the internal fixation of fractures, osteotomies, and non-unions of the distal tibia, including:

• Intra-articular fractures (Pilon fractures, AO/OTA 43-B and 43-C types).
• Fractures of the medial malleolus requiring buttress plating.
• Distal tibial shaft fractures extending into the metaphysis.
• Fractures in osteopenic or osteoporotic bone where screw purchase is compromised.
• Corrective osteotomies for distal tibial deformities.

Technical Specifications

OrthoPro adheres to strict quality control standards to ensure the reliability of our implants. The VA Distal Tibia Locking L-Plate is manufactured to be compatible with standard instrumentation sets.

Manufacturing Excellence and Quality Assurance

At OrthoPro, we prioritize patient safety and product efficacy. Our VA Distal Tibia Locking L-Plate is produced in ISO-certified facilities using high-precision CNC machining. We conduct rigorous mechanical testing, including fatigue strength and corrosion resistance analysis, to ensure our implants meet international orthopedic standards.

We are committed to serving the global B2B market. OrthoPro offers flexible supply chain solutions, including private labeling (OEM) and rapid shipping logistics to over 50 countries. Our competitive factory-direct pricing helps distributors maximize their margins while providing high-quality solutions to their local hospitals.

Why Choose OrthoPro?

• Cost-Effective: Direct manufacturing eliminates middleman costs.
• Reliability: Consistent quality and stock availability.
• Support: Dedicated account managers and technical documentation support.

Contact Us for a Quote

Ready to expand your orthopedic product line? Contact OrthoPro today for the latest price list and detailed product catalogs for the VA Distal Tibia Locking L-Plate.
